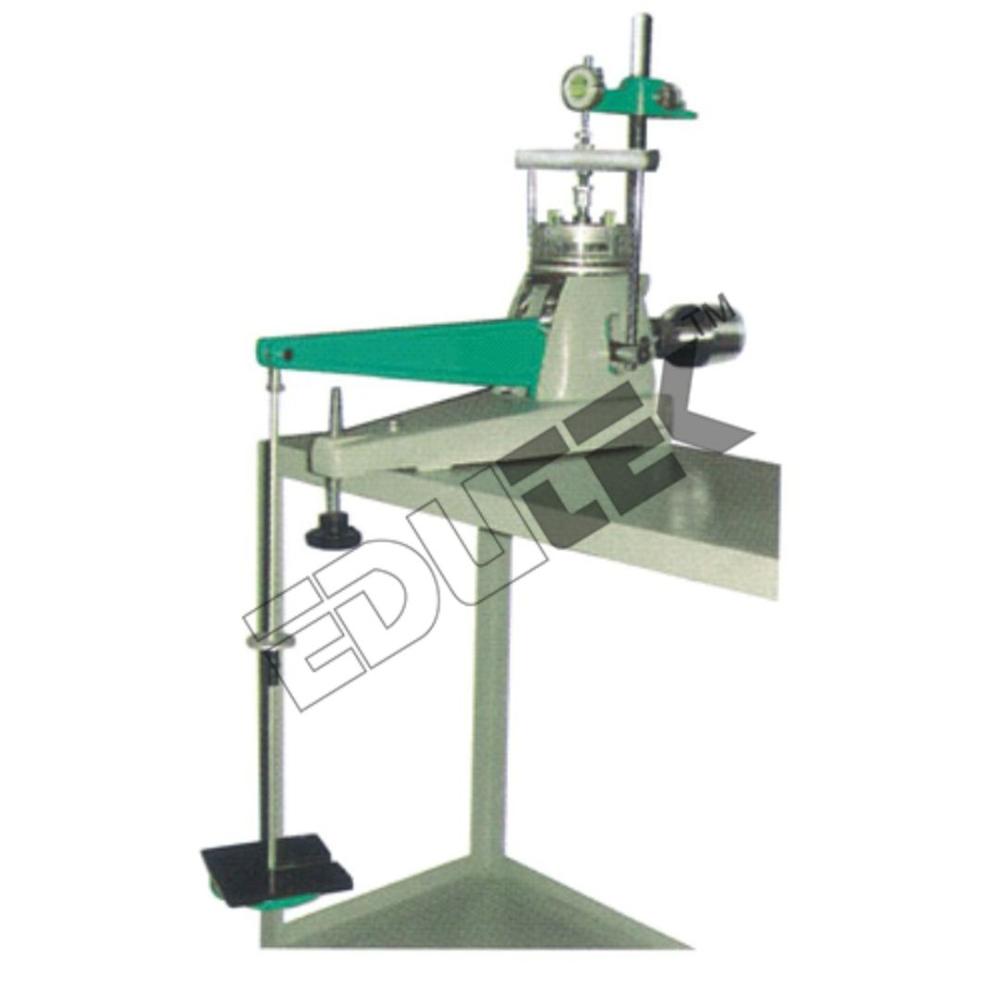

Consolidation Apparatus

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Consolidation Apparatus Specification

Capacity
50 kg Kg

Classification
Geotechnical Engineering / Soil Mechanics Testing

Feature
Durable construction for soil testing

Automation Grade
Semi-Automatic

Temperature Range
0-50 C Celsius (oC)

Application
Civil Engineering, Geotechnical Labs

Material
Steel, Brass, Cast Iron

Operate Method
Incremental Loading: Weights are added to the lever arm to apply pressure; displacement is recorded over time at each load increment

Frequency
50 Hz Hertz (HZ)

Power Source
Electric

Usage
Predicting settlement of structures on clayey soils, foundation design

Product Type
Soil Settlement Tester / Compressibility Tester

Accuracy
1% %

Measurement Range
0-100 kN

Warranty
1 year

Model No

Voltage
220V Volt (v)

Core Components
Steel

Color
Select (Typically Blue/Green/Grey)

Equipment Materials
Stainless Steel

Type
Bench-mounted apparatus

Display Type
Analog

Dimension (L*W*H)
120x80x60 cm Centimeter (cm)

Weight
18 kg Kilograms (kg)

About Consolidation Apparatus

Consolidation Apparatus Front Loading Type

Rigidly manufactured from aluminium alloy casting to provide a high degree of accuracy with any frame distorsion under load. The load bridge group is supported in high accuracy self-aligning seat balls. The beam provides three loading ratio: 9: 1 10: 1 11: 1 and the beam assembly is fitted with an adjustable counterbalance weight. Maximum load: 150 kg of slotted weights. The odeometer accepts cells up to 100 cm. sq. Supplied complete with rod holding the weights and coupling block holding the dial gauge or transducer. Supplied 'without': Consolidation cell, Weights, Dial Gauge (or transducer), holding bench which have to be ordered separately.
