Send InquiryCONCENTRIC TUBE HEAT EXCHANGER APPARATUS
Price 1000.0 INR/ Piece
MOQ : 1 Piece
CONCENTRIC TUBE HEAT EXCHANGER APPARATUS Specification
- Product Type
- CONCENTRIC TUBE HEAT EXCHANGER APPARATUS
- Feature

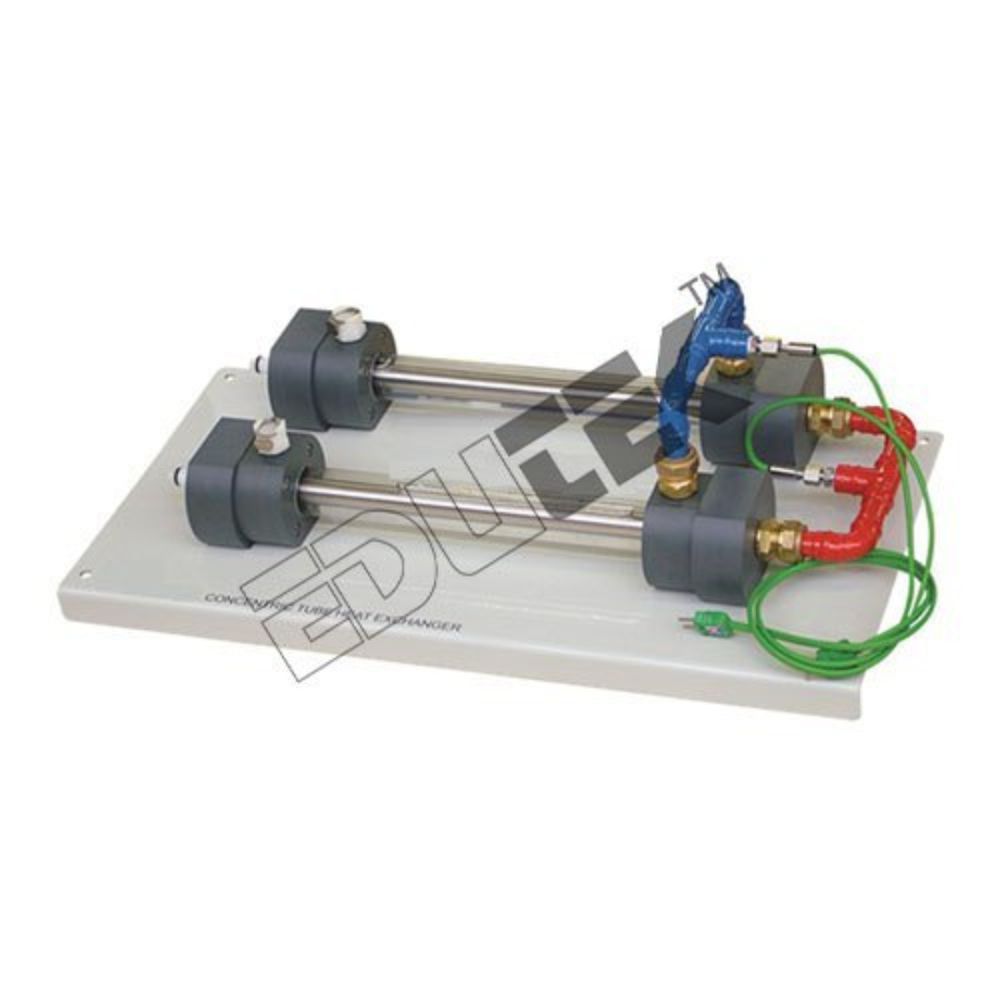

- CONCENTRIC TUBE HEAT EXCHANGER APPARATUS This is the simplest of the optionalheat exchangers. It has two tubes, one inside the other. One tube carries hot fluid, the othercarries cold fluid. Heat transfers between them. Edutek heat exchanger is in two equalparts joined by intermediate pipes. This allows two extra measurementpoints at the midpoint (plus the standard four points at the connectors). Thisgives more useful experiment results, to show more clearly how the fluidtemperatures change during heat transfer. The Service Module (TD360) provideshot and cold water to the heat exchanger and all the instruments needed tomeasure its performance. All fluid connections to the heatexchanger are self-sealing quick connectors - for safety and simplicity. Thehot and cold fluid streams have different connectors to reduce errors. Connecting the heat exchanger takesless than one minute. The heat exchanger is on a bedplatethat has a clear schematic diagram showing the connections. The bedplate fixes to the ServiceModule with thumbscrews.
- Warranty
- 1 Year
- Usage
- Heat Transfer Laboratory Equipment
- Application
- Heat Transfer Laboratory Equipment
- Type
- CONCENTRIC TUBE HEAT EXCHANGER APPARATUS
CONCENTRIC TUBE HEAT EXCHANGER APPARATUS Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About CONCENTRIC TUBE HEAT EXCHANGER APPARATUS
Specification:
CONCENTRIC TUBE HEAT EXCHANGER APPARATUS
This is the simplest of the optionalheat exchangers. It has two tubes, one inside the other.
One tube carries hot fluid, the othercarries cold fluid. Heat transfers between them.
Edutek heat exchanger is in two equalparts joined by intermediate pipes.
This allows two extra measurementpoints at the midpoint (plus the standard four points at the connectors). Thisgives more useful experiment results, to show more clearly how the fluidtemperatures change during heat transfer.
The Service Module (TD360) provideshot and cold water to the heat exchanger and all the instruments needed tomeasure its performance.
All fluid connections to the heatexchanger are self-sealing quick connectors - for safety and simplicity. Thehot and cold fluid streams have different connectors to reduce errors.
Connecting the heat exchanger takesless than one minute.
The heat exchanger is on a bedplatethat has a clear schematic diagram showing the connections.
The bedplate fixes to the ServiceModule with thumbscrews.
Enhanced Measurement Capabilities
This apparatus provides six distinct measurement points-four at the connectors and two at the midpoint-allowing users to monitor temperature variations meticulously along the heat exchanger. This comprehensive data supports a clearer understanding of heat transfer dynamics, making the equipment ideal for laboratory demonstrations and advanced research.
User-Friendly Design
Equipped with self-sealing quick connectors and differentiated fluid connections, the heat exchanger is both safe and convenient to use. The intuitive bedplate features a clear schematic diagram for easy setup, and mounting onto the Service Module requires only a few minutes, allowing experiments to commence promptly.
Versatile Laboratory Application
Purpose-built for educational and experimental use, this apparatus enables students and researchers to observe and analyze the behaviors of heat transfer under various conditions. Its durable construction and standardized connections ensure compatibility with most laboratory service modules, offering lasting value and reliability.
FAQ's of CONCENTRIC TUBE HEAT EXCHANGER APPARATUS:
Q: How do I set up the Concentric Tube Heat Exchanger Apparatus?
A: Setting up the apparatus is simple and takes less than one minute. Attach the bedplate to the Service Module using thumbscrews, and connect the hot and cold fluid lines using the self-sealing quick connectors. The clearly marked schematic on the bedplate guides the process to ensure correct assembly.Q: What are the primary benefits of using this heat exchanger in a laboratory?
A: The main advantages include quick and safe setup, the ability to monitor temperature at multiple points, and a clear schematic for connections. These features deliver accurate experimental results and a deeper understanding of heat transfer principles for educational and research purposes.Q: Where is this apparatus typically used?
A: This product is primarily used in heat transfer laboratories within educational institutions, research centers, and industrial training facilities. Its design and functionality align with the requirements for hands-on experiments and demonstrations.Q: What is the process of measuring heat transfer using this apparatus?
A: Hot and cold fluids are supplied to the inner and outer tubes, respectively, from the Service Module. As the fluids flow through the exchanger, temperature is measured at six points along the length. These readings allow calculation and analysis of heat exchange between the two streams.Q: When should the apparatus be used during an experiment?
A: The apparatus should be employed whenever a practical demonstration or investigation of heat transfer between fluids is needed. It is suitable for foundational heat transfer studies and advanced experimental research focused on temperature distribution and energy exchange.Q: Is the Concentric Tube Heat Exchanger Apparatus suitable for exporting and manufacturing?
A: Yes, the apparatus is suitable for both export and manufacturing, as it is designed to meet the standards required for international markets. Suppliers and manufacturers in India, as well as exporters, commonly use and distribute this product.
