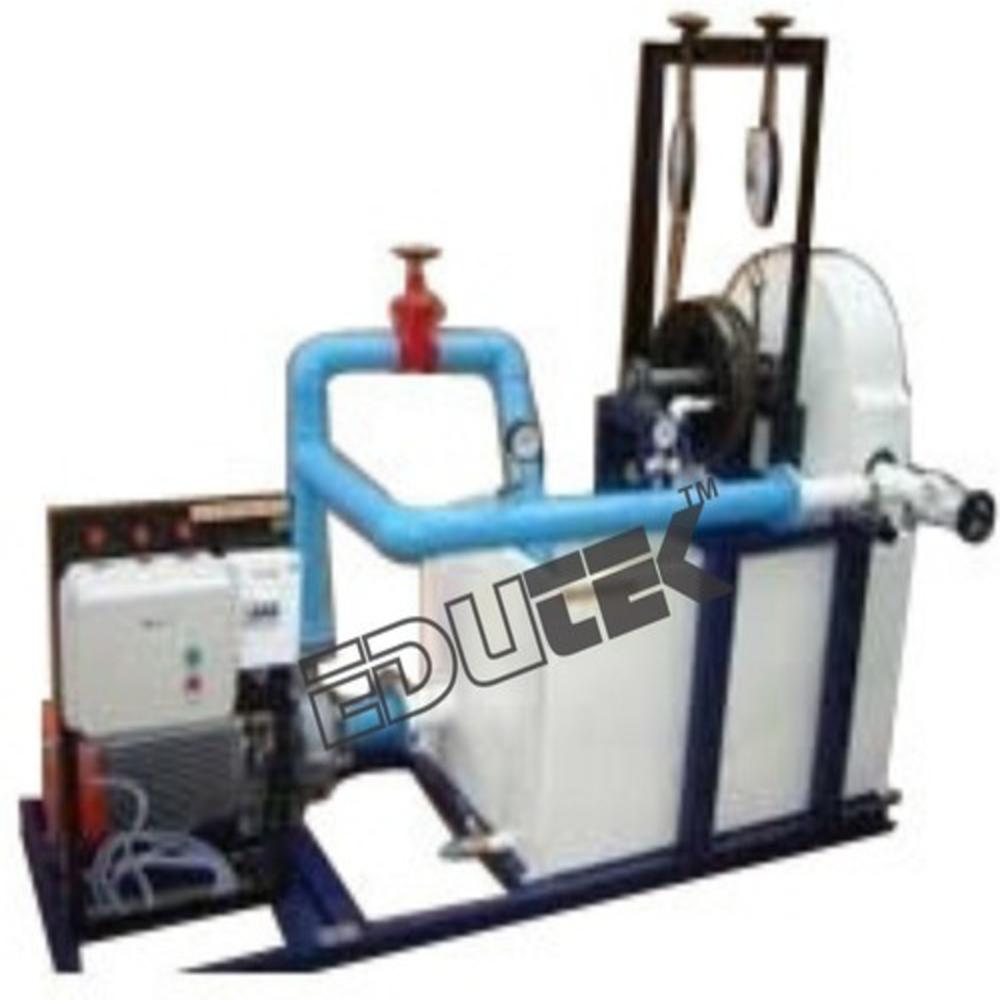

Computerized Pelton Turbine Study Unit Bench Top Model

About Computerized Pelton Turbine Study Unit Bench Top Model

COMPUTERIZED PELTON TURBINE STUDY UNIT- BENCH TOP MODEL

• Allows to study the typical parameters of action turbines Consist of two units: basic unit control board with signal conditioning and A/D conversion unit
• The basic unit should be composed of:Support frame made of stainless steel, square shaped 25x25x2 overall dimensions 800x555x60h mm with adjustable feet, with the support surface in PVC
• Closed stainless water steel tank with inspection cover overall dimensions: 500 x 450 x 200 h mm capacity: 40 l approx
• Centrifugal electric pump: rotation speed: 2900 rpm
• Power: 0.75 kW capacity: 8 to 60 l/min
• Head: 59 to 10 m H.O Pelton turbine made of inoxidable materiall.
• Outflow nozzle of Doble type made of stainless steel Deviation plate
• Glow screen made of transparent Plexiglas Permanent magneto d.c. servomotor (electric brake): rated current 5.4 A rated voltage 48 V
• Max power 210 W at 3000 rpm Turbine type flowmeter 4000 l/h max
• Manometer 0 to 6 bar, piezometric type, with analogical output
• Digital revolution transducer
• The Control board with signal conditioning and A/D conversion unit should be composed of: Pump switch.
• Digital ammeter with analog output for the measurement of brake excitation current
• Digital voltmeter with analog output for the measurement of brake excitation voltage
• Digital revolution counter with analog output for the measurement of turbine rotation speed. Digital display with analog output for the flow rate measurement. Potentiometer for load regulation. Resistive load.
• Signal conditioning and A/D conversion unit. The unit can be connected to a Personal Computer through USB port.
• The acquisition and analysis software should: run in MS-Windows environment allow the automatic acquisition of the tranducers signals and the calculation of all the required parameter
• Visualize on the screen or print the acquired data versus time diagrams or the diagrams required for the exercises
• Save the acquired data and the calculated one in
• ASCII format making simulations typing the data
• The software run on a PC
• Minimum characteristics: Pentium con Hard Disk (> 10Gb) and CD drive Graphic card SVGA 800x600 Mouse RAM 32 MB min
• USB port Graphic printer
• MS-Windows ver. 95 or following

Supplies:

• Electrical power: 220 V AC single-phase, 50/60 Hz, 1.3 kW
• Water: tank filling

Dimensions:

• 800x550x800 h mm (Basic unit)
• 540x350x340 h mm (Control board)

Net Weight:

• 54 kg (Basic unit)
• 12 kg (Control board)

Advanced Laboratory Learning Tool

This model offers a comprehensive and hands-on learning experience in fluid mechanics and hydraulic machinery laboratories. Its computerized interface enables real-time data acquisition and analysis, helping users understand the operational nuances of Pelton turbines effectively.


Exceptional Efficiency and Precision

The bench top unit boasts 100% accuracy, making it an ideal choice for experiments requiring highly reliable results. Its robust design and superior components ensure consistently efficient performance during repeated educational or research sessions.


Built for Practical Usability

With dimensions suited for any standard laboratory bench and a manageable weight, this study unit is easy to install, operate, and maintain. The included warranty and local manufacturing support guarantee a seamless user experience.
