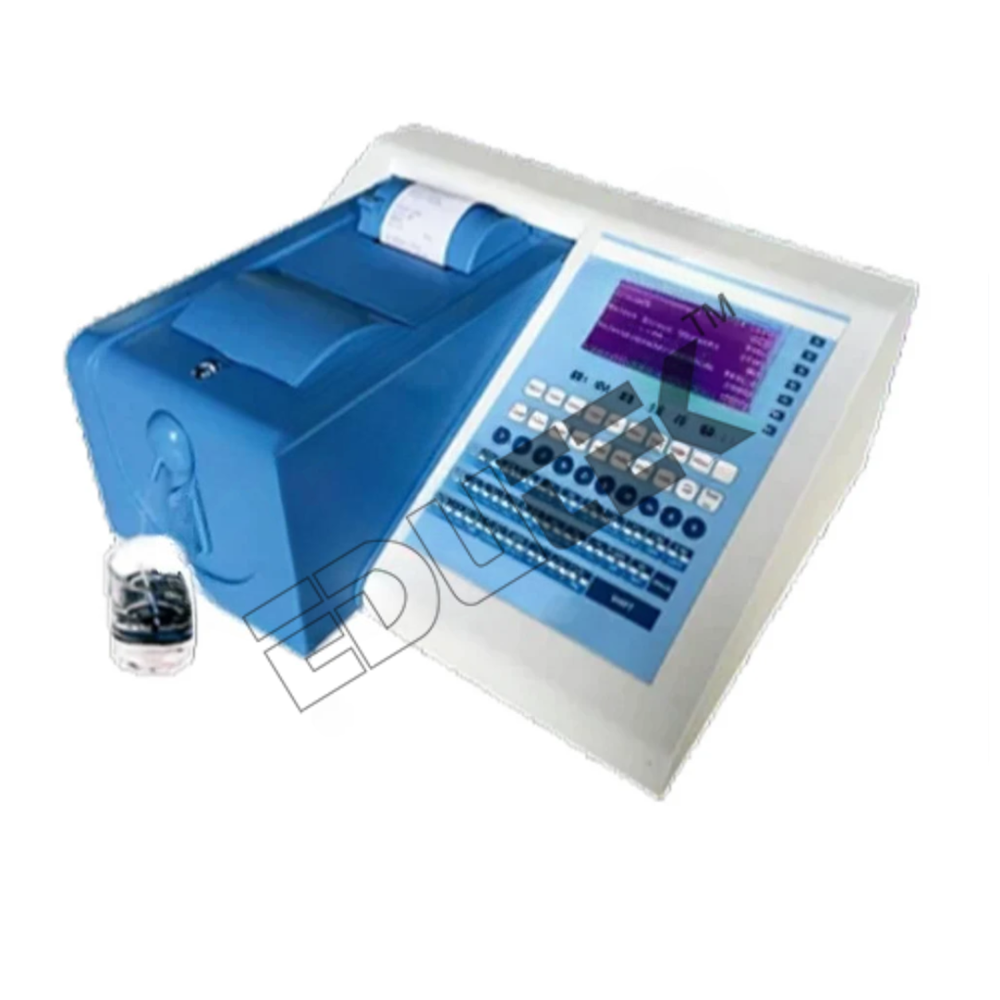

COMPACT BIOCHEMISTRY ANALYZER

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

COMPACT BIOCHEMISTRY ANALYZER Specification

Voltage
Voltage 115 - 230 Volts 10%, 50 - 60 Hz Volt (v)

Product Type
COMPACT BIOCHEMISTRY ANALYZER

Operate Method
Microprocessor Controlled, User-friendly Interface

Dimension (L*W*H)
330 mm x 460 mm x 270 mm

Classification
Laboratory Equipment

Weight
Approx. 10 Kg

Capacity
100 Tests/Hour

Application
Clinical Chemistry, Laboratory Diagnostics

Power
Power - 100 VA Volt (v)

Material
ABS Plastic, Stainless Steel Components

Usage
Graphics LCD

Color
White/Blue

COMPACT BIOCHEMISTRY ANALYZER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About COMPACT BIOCHEMISTRY ANALYZER

COMPACT BIOCHEMISTRY ANALYZER : ETA-32

Technical Specifications :

Human Machine Interface

Dynamic keypad

Linear Measurement Range

0.000 to 3.000 Absorbance Units (A)

Photometric Accuracy

2% or 0.007 whichever is higher, from 0 to 1.5 A,

3% from 1.5 A to 3.0 A

Filters

High Quality Narrow band Interference

340, 405, 510, 546, 578 and 630 mm & Two Optianal

Flow cell

18 l & up to 1000 l Sipping volume

Temp. of Cuvette / Flow cell Block

25 C, 30 C and 37 C by Peltier effect

Light Source

Tungsten Halogen

Display

Graphics LCD

Printer

Built in Thermal Printer, 20 Column

Storage Capacity

250 User Defined Test Programs & 2500 Patient results

Analysis Mode

Absorbance, End Point, Fixed Time, Kinetic, Defferential, Ratio, Coagulation

Voltage

115 - 230 Volts ± 10%, 50 - 60 Hz

Power - 100 VA

Features

52 Direct Access Test Keys

Specially designed long life Perisaltic Pump

Unique circuitry for long lamp life

Triple cuvette system

Monochromatic, Bichromatic measurement.

Patient report with PID & Name

User friendly software USB Interface

Efficient Analysis with Advanced Technology

The analyzer leverages state-of-the-art microprocessor technology and a halogen lamp light source to deliver swift and accurate results. Supporting up to 100 tests per hour, its automatic/manual calibration and dual cell options enhance adaptability. Whether for routine clinical chemistry or specialized lab diagnostics, it accommodates rigorous workflows seamlessly.

User-Friendly Interface and Robust Data Management

A generously sized graphics LCD and intuitive controls make operation straightforward. Store and retrieve up to 2,000 test results, while data can be printed directly via the thermal printer. USB and RS232 interfaces facilitate connectivity, ensuring streamlined integration into existing laboratory systems.

Reliable Performance and Durable Design

Constructed with high-quality ABS plastic and stainless steel elements, the analyzer remains resilient under demanding laboratory conditions. It operates effectively between 15C to 32C and up to 85% relative humidity. Its compact dimensions and lightweight build make installation and repositioning convenient for laboratory workflows.

FAQs of COMPACT BIOCHEMISTRY ANALYZER:

Q: How does the Compact Biochemistry Analyzer ensure accurate calibration for clinical tests?

A: This analyzer offers both automatic and manual calibration options, allowing labs to maintain precise measurement protocols. Users can select calibration methods based on specific test requirements to achieve consistent and reliable results every time.

Q: What is the process for storing and retrieving test results on the analyzer?

A: Up to 2,000 test results can be stored in the devices memory. Users can access historical data via the graphics LCD interface, export results through USB or RS232 ports, or print records directly using the built-in thermal printer, facilitating efficient data management.

Q: When should I opt for the flow cell or the open cell cuvette option?

A: The flow cell is recommended for continuous and automated workflows, whereas the optional open cell is ideal for manual or low-throughput applications. The choice depends on sample handling preferences and test volume in your laboratory.

Q: Where can this analyzer be installed, and what are its space requirements?

A: The compact design (330 mm x 460 mm x 270 mm) allows it to fit in various laboratory settings with limited bench space. Its lightweight construction (approximately 10 kg) ensures ease of placement and relocation as needed.

Q: What are the main benefits of using the built-in thermal printer?

A: The built-in thermal printer provides immediate, high-quality printouts of test results, streamlining record-keeping and facilitating quick data sharing. This integration saves time and reduces dependency on additional external devices.

Q: How do power and environmental requirements affect the analyzers operation?

A: The unit operates efficiently between 15C and 32C with a relative humidity of up to 85%. It supports a wide voltage range (115230 Volts) and requires standard laboratory power conditions, maximizing flexibility for global installation.
