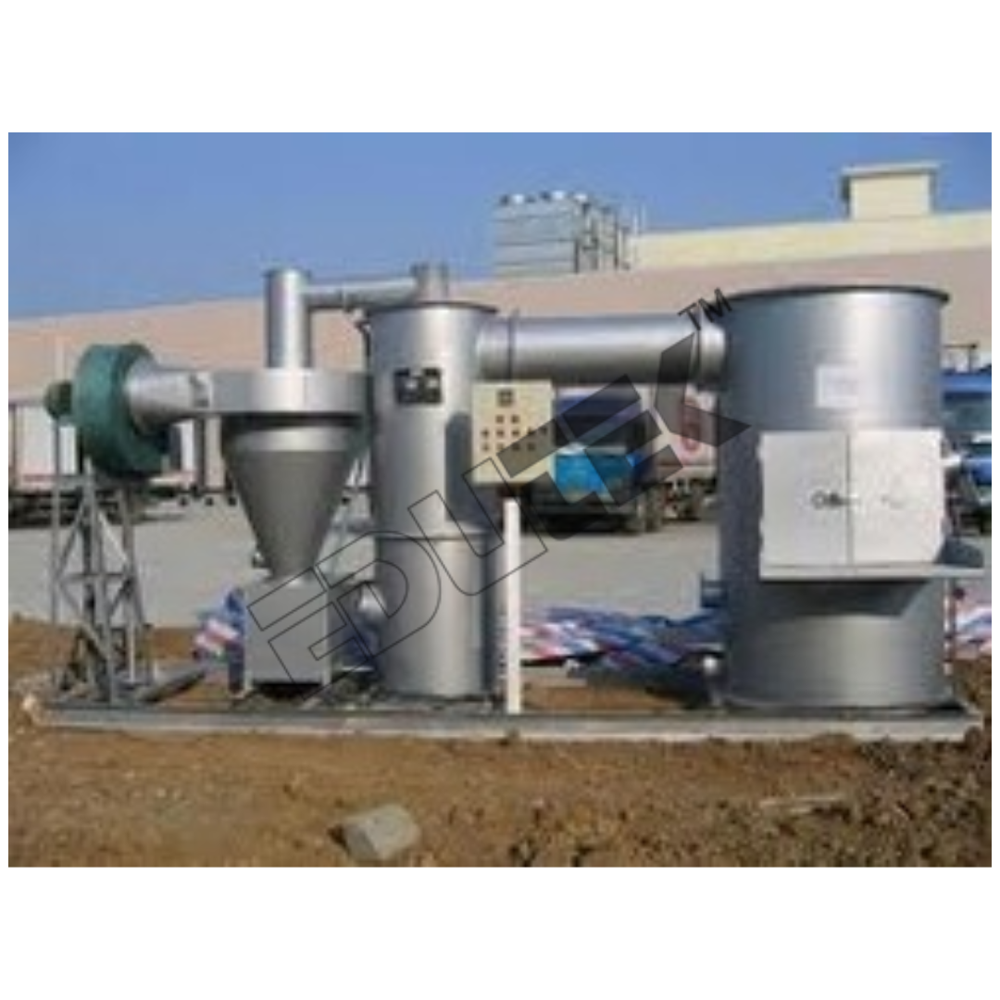

Chemical Waste Incinerator

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Chemical Waste Incinerator Specification

Core Components
Burner, Combustion Chamber, Control Panel

Voltage
220-240 V

Accuracy
100 %

Measurement Range
Up to 100 kg/hr

Frequency
50 Hz

Power Source
Electric

Feature
Highly Efficient

Temperature Range
up to 1200C

Model No
CWI-100

Capacity
100 kg/hr

Automation Grade
Semi-Automatic

Equipment Materials
Mild Steel (MS)

Type
Chemical Waste Incinerator

Usage
Laboratory

Display Type
Digital

Dimension (L*W*H)
1800 x 900 x 1700 mm

Weight
Approx. 600 kg

About Chemical Waste Incinerator

Chemical Waste Incinerator

Specifications of Chemical Waste Incinerator :

We offer a high quality of Chemical Waste Incinerator to our valuable customers. These products are used for effective disposal of chemical waste as per the emission standards decided by government. These products are manufactured using optimum quality raw materials that are sourced from reliable vendors. These products are designed to work with wide range of fuels. These systems can be customized as per the requirements of our customers.

The Chemical Waste is also a very dangerous waste for the Health and Life on the Earth. A Perfect Chemical Waste Incinerator can Incinerate almost all type of Chemical Waste as per the Emission Standard Decided by Government. We Design the Incinerators with Different Fuel for Incineration of your Chemical Waste. LDO, , HSD, Diesel, FO (Furnace Oil), LPG, CNG Natural Gas, Etc. can be used as Fuel of our Chemical Waste Incinerators. Our Design is proven and Running Successfully in Many Companies. Please Contact Us for Low Fuel / Fuel Efficient Chemical Waste Incineration System.

Features of Chemical Waste Incinerator :

Primary Chamber with 1 Fully Auto and 1 Manual Burner Assembly (With Fire Proof Bricks Lining.
Secondary Chamber with Automatic Burner (With Fire Proof Bricks Lining).
Venture Scrubber with SS Shower.
Scrubber with SS Shower for Wet Scrubbing.
ID Fan with SS Impellers.
Chimney with Ladder, Platform & Sampling Point.
Duct Line with Inside Lining.
Heavy Construction for Long Life.
Special Design as per your Chemical Waste and as per your Required Capacity.
Incineration as per Emission Standard.
Available for Liquid/Solid Chemical Incineration also in Special Application.
Also Available Small Size Lower Capacity Incinerators.

Specifications of Chemical Waste Incinerator :

Capacity: 10 Liters Per Hour to 5000 Liters Per Hour.
Impeller: Stainless Steel.
Fuel: LPG, CNG, Natural Gas.

Advanced Combustion Technology

This incinerator employs a refractory-lined mild steel combustion chamber for optimal heat retention and uniform waste destruction. Oil or gas-powered burners, managed via an automatic electric igniter, facilitate an accurate burn cycle for laboratory-generated chemical waste. Digital readouts consistently monitor temperature, ensuring reliable operation.

Effective Emission Control

An integrated wet scrubber system captures and neutralizes hazardous substances, reducing the risk of environmental contamination. The extended 6-metre chimney enhances safe dispersal of processed gases, aligning with pollution standards. This ensures cleaner exhaust and safer ambience for laboratory staff.

FAQs of Chemical Waste Incinerator:

Q: How does the Chemical Waste Incinerator maintain accurate temperature control during operation?

A: The incinerator features a digital display and automatic controls, allowing precise monitoring and maintaining temperatures up to 1200C. The automatic electric igniter and efficient oil/gas-fired burners ensure stable combustion throughout the process.

Q: What types of waste can be processed by this incinerator in laboratory settings?

A: This model is optimized for chemical waste generated in laboratories, efficiently incinerating hazardous and non-hazardous chemical residues, solvents, and related materials within its 100 kg/hr capacity.

Q: When should the ash residue be removed, and how much is generated?

A: Typically, ash residue should be checked and removed after each incineration cycle. The system produces less than 3% ash relative to the input waste, making removal and disposal manageable.

Q: Where should the CWI-100 incinerator be installed for optimal performance?

A: It should be installed in well-ventilated outdoor or semi-outdoor laboratory spaces with access to stable electricity (220-240 V) and fuel. Proper placement of the 6-metre chimney is essential for effective emissions dispersal.

Q: What is the process by which the incinerator reduces emissions?

A: During operation, waste is combusted in the primary chamber, and gases pass through an afterburner reaching up to 1100C. The wet scrubber then neutralizes harmful particulates before gases exit via the chimney, meeting environmental safety norms.

Q: How is the equipment maintained for reliable usage?

A: Routine checks of the burners, chamber lining, wet scrubber, and digital controls are recommended. Regularly clearing ash residue and ensuring the chimney and emission systems are unobstructed ensures maximum efficiency and longevity.

Q: What benefits does this incinerator offer laboratories handling chemical waste?

A: The CWI-100 delivers precise, efficient waste destruction with minimal ash generation, robust emission control, and user-friendly, semi-automatic features. This promotes a safer working environment and regulatory compliance for laboratories.
