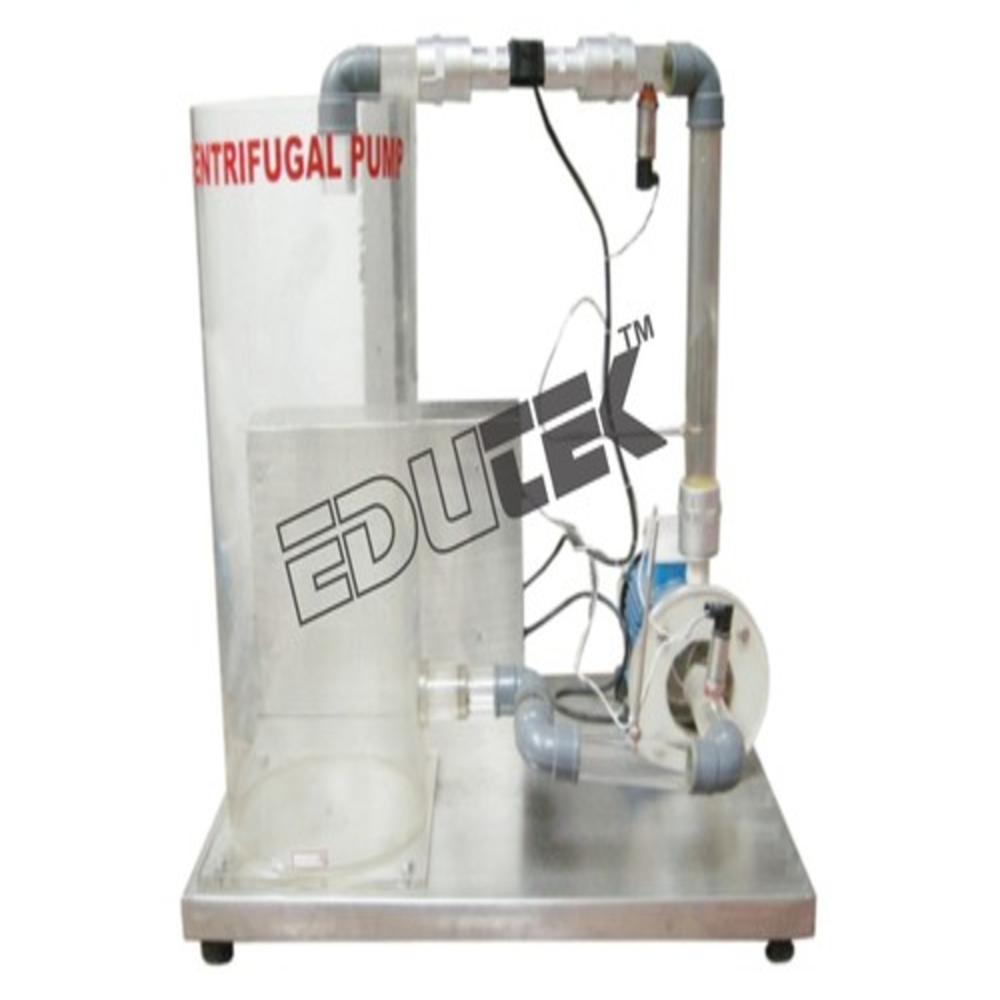

Centrifugal Pumps Study Unit

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Centrifugal Pumps Study Unit Specification

Feature
Highly Efficient

Weight
130 Kilograms (kg)

Dimension (L*W*H)
1000 x 1410 x 1900 Millimeter (mm)

Accuracy
100 %

Warranty
1 year

Type
CENTRIFUGAL PUMPS STUDY UNIT

Usage
Laboratory

About Centrifugal Pumps Study Unit

CENTRIFUGAL PUMPS STUDY UNIT

With wheels
made of steel square shaped 30x30x2mm
Overall dimensions: 1000x1410x1615h mm

The water feeding tank:

Made of stainless steel
Overall dimensions: 795x900x550h
Capacity 350l approx
Equipped with a ischarge valve, an ivory PVC cover with inspection hole with lid

The graduated tank to measure delivery:

Made of stainless steel
Overall dimensions: 795x900x550h
Capacity 170l approx.
Equipped with a discharge valve, an over flow, a water
Feeding circuit and a level indicator

The first pump should be:

Open-impeller centrifugal type
Delivery 25 to 80 l/min, head 1.3 to 0.9 bar
Driven by 2-speed three-phase Dahlander type induction motor
Power 0.8-1.1 kW at 1450-2900 rpm

The second pump should be:

Open-impeller centrifugal type
Delivery 25 to 80 l/min, head 1.3 to 0.9 bar
Driven by a swing frame d.c. motor with two shaft ends,
Power 0.5 kW at 2900 rpm
Each pump must be equipped with a flowmeter with the following characteristics:
Produced entirely in Plexiglas with a calibrated and polished conical measuring hole obtained directly in the structure free float in AlSl 316
Measuring range 0÷6000l/h;.
Precision ±5% fs
Hydraulic circuit with 6 ball valves to connect the two pumps in series or in parallel.
Flow regulation valve
Series of 4 gauges mounted on a vertical panel:
Case in AISI 304;
Wetted parts: Brass/Copper alloy
Nominal diameter 100mm
Measuring range: -1÷ 1,5 bar, accuracy class 1
Case in AISI 304:
Wetted parts: Brass/Copper alloy
Nominal diameter 100mm
Measuring range: 0÷ 2,5 bar, accuracy class 1
Case in AISI 304:
Wetted parts in AISI 316L
Nominal diameter 150mm
Measuring range: -1÷ 0 bar, accuracy class 1
Case in AISI 304:
Wetted parts in AISI 316L
Nominal diameter 150mm
Measuring range: 0 ÷ 4 bar, accuracy class 1
N°4 pressure taps with quick connect couplings for easy
Connection with the measuring instruments

Load cell connected to the dc motor:

Measuring range: 0÷6 kg
Measurement error < ±0,046% f.s.

Speed Sensor proximity type:

Measuring range 0 ÷ 15000 RPM
Accuracy of ± 2% f.s.

Electric control panel (ECB) incorporating the following instruments:

Voltmeter
Ammeter
Digital speed indicator
Digital torque indicator
Electric supply: 220/380 V three-phase, 50/60 Hz, 2.2 kW.
Hydraulic supply: to fill the tank with water.
Overall dimensions: 1000 x 1410 x 1900 h mm
Net weight: 130kg

Comprehensive Learning Tool

This study unit is crafted to facilitate in-depth exploration of centrifugal pump operations in laboratory environments. Its user-friendly design and precise instrumentation empower users to observe, measure, and understand fluid dynamics efficiently.

Engineered for Reliability and Accuracy

With an exceptional 100% accuracy rating and sturdy construction, the Centrifugal Pumps Study Unit provides consistent and dependable results. Its robust design ensures durability and long-term use, making it ideal for both training and demonstration purposes.
