CBR Test Machine

Get a Price/Quote

MOQ : 1 Unit

CBR Test Machine Specification

Operate Method
Automated Penetration: The piston penetrates the sample at a fixed rate, and the corresponding load is measured at 2.5mm and 5.0mm penetration

Automation Grade
Manual / Semi-Automatic

Frequency
50 Hz Hertz (HZ)

Application
Civil Engineering, Highway Labs, Geotechnical Labs

Usage
Thickness design of pavement layers for roads and airports

Core Components
Load Frame, Dial Gauge, Penetration Piston, Mould, Proving Ring

Material
Steel, Brass, Electronic Components

Feature
Highly Efficient

Classification
Geotechnical Engineering / Highway Engineering

Capacity
50 kN (5000 kgf) Kg

Measurement Range
0 - 50 kN

Accuracy
100 % %

Color
Select (Typically Blue/Grey Frame)

Voltage
220 V Volt (v)

Power Source
Electric (Manual Hand Operated Also Available)

Temperature Range
Ambient Celsius (oC)

Product Type
Soil Strength Tester / Pavement Subgrade Tester

Equipment Materials
Mild Steel Frame with Powder Coating

Type
Compression & Penetration Testing Machine

Display Type
Analog Dial Gauge

Dimension (L*W*H)
700 mm x 500 mm x 1300 mm Millimeter (mm)

Weight
Approx 90 kg Kilograms (kg)

Test Conforming Standards
IS 2720 (Part XVI), ASTM D1883

Speed of Penetration
1.25 mm/minute

Suitable For
Soil Testing / CBR Value Determination of Subgrade and Sub-base Materials

Mould Size
150 mm internal diameter x 175 mm height

Plunger Diameter
50 mm

Operation Mode
Mechanical Jack with Motor Drive Option

Surface Finish
Powder Coated / Painted

Accessories Included
CBR Mould, Collar, Spacer Disc, Cutting Collar, Filter Paper, Base Plate, Annular Surcharge Weight, Slotted Surcharge Weight, Penetration Piston

Maximum Plunger Penetration
50 mm

Load Measurement
By Proving Ring or Load Cell

About CBR Test Machine

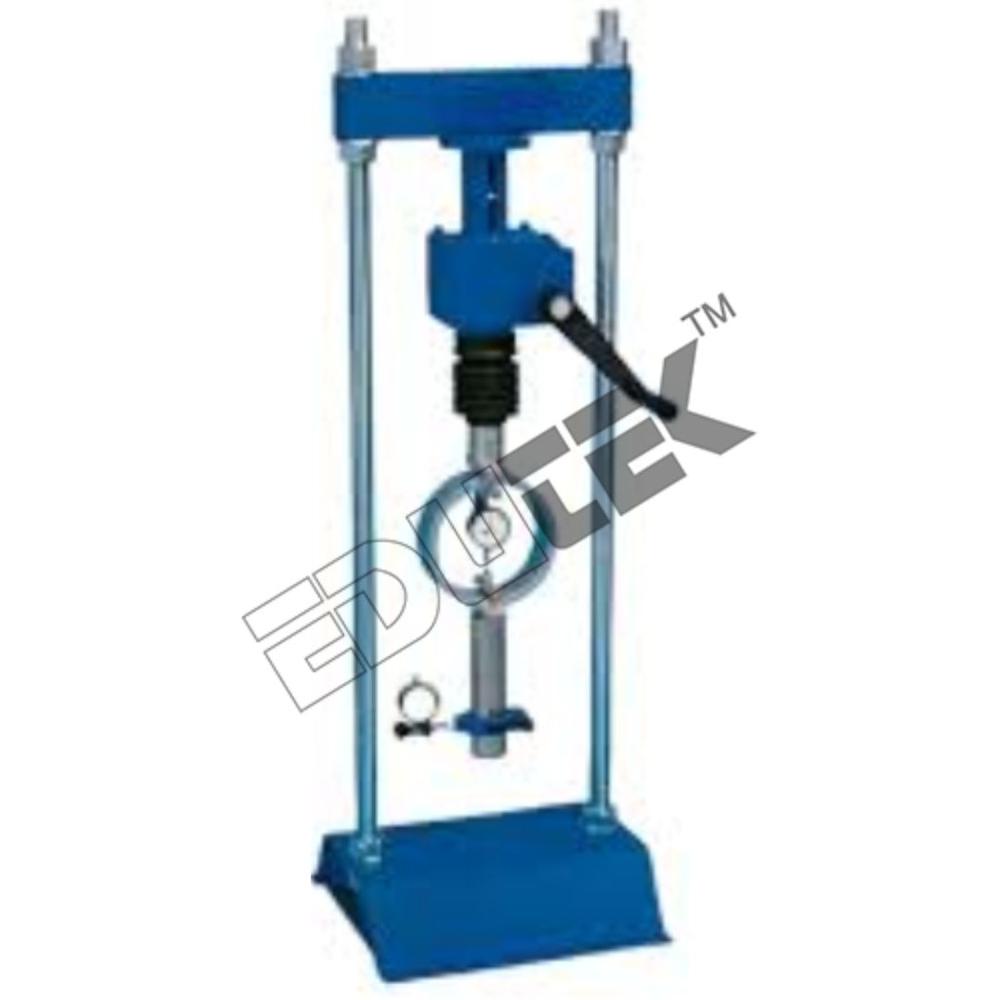

CBR TEST MACHINE HAND OPERATED

Edutek are offering a wide range of CBR Test machine for Material testing . cbr soil testing Machine, Material testing Equipment , Hand Operated Compression Testing Machine Gauge Type Compression Testing machine, Engineering Testing machine , Soil Testing machine , Concrete testing machine Exporter.

Use: CBR test in Lab to determine soil bearing capacity

Specifications of CBR Testing machine For Material Testing

1 CBR Loading Press.
Proving Ring. 28 kN (6,000 lb) capacity.
Proving Ring. 50 kN (11,200 lb) capacity. Penetration Dial Indicator. 25 mm range x 0.01 mm divisions.
4 CBR Molds.
1 Spacer Disc.
4 Filter Screens.
1 Box, Filter Paper.
2 Swell Plates.
1 Tripod Attachment.
4 Surcharge Weights.
4 Slotted Surcharge Weights.
1 Compaction Hammer.
1 Straightedge.
1 Cutting Edge

Superior Accuracy and Efficiency
With an accuracy of 100% and efficient operation, the C B R Test Machine ensures reliable test results for soil conditions. The machines robust components, including a mechanical jack, motor drive option, and analog display, streamline the test process, making laboratory assessments quick and dependable.

Comprehensive Accessories Included

This machine is delivered with all key accessories such as the CBR mould, collar, spacer disc, cutting collar, filter paper, base plate, and surcharge weights. These components are essential for conducting thorough CBR tests and adhering to international and Indian standards.

Adaptable and User-Friendly Design
The equipment operates both manually and semi-automatically, powered by either electric or hand operation. Its powder-coated surface and compact dimensions make it durable and space-efficient for any laboratory setting. The ergonomic design ensures smooth handling and straightforward operation.

FAQs of Premium Quality C B R Test Machine:

Q: How is the Premium Quality C B R Test Machine operated?

A: The machine can be operated manually via a mechanical jack or semi-automatically using a motor drive. It can be powered by electricity (220V) or used in manual hand-operated mode, offering flexibility for different laboratory setups.

Q: What is the process for conducting a CBR test using this machine?

A: To perform a CBR test, prepare the soil sample in the provided mould, fit it with the collar and surcharge weights, and place it in the machine. The plunger penetrates the sample at a speed of 1.25 mm/minute. Load readings are recorded using the analog dial gauge, with a measurement range of 0-50 kN, ensuring results conform to IS 2720 (Part XVI) and ASTM D1883 standards.

Q: When should this CBR testing equipment be used?

A: This machine is best used during laboratory analysis of soil for determining the CBR value, especially in assessments of subgrade and sub-base materials for roads, highways, and construction projects that require accurate soil strength evaluation.

Q: Where can the C B R Test Machine be installed and used?

A: The machine is designed for laboratory environments and is suitable for use by exporters, manufacturers, and suppliers across India. Its moderate size and durable frame make it ideal for installation in soil testing laboratories or civil engineering facilities.

Q: What are the key benefits of this CBR Test Machine?

A: The machine offers high efficiency, 100% accuracy, and compliance with global standards. Its comprehensive accessory kit, durable construction, and manual/semi-automatic operation options make it a reliable and cost-effective solution for laboratory soil testing.

Q: Which accessories are included with the equipment?

A: Accessories provided include a CBR mould, collar, spacer disc, cutting collar, filter paper, base plate, annular and slotted surcharge weights, and a penetration piston. These ensure all standard CBR test procedures can be performed as required.

Q: How does the analog dial gauge support test accuracy?

A: The analog dial gauge facilitates precise load measurements, enabling users to monitor the plunger penetration and applied force in real time. This ensures that the CBR values obtained are accurate and reliable for engineering assessments.
