California Bearing Ratio Test Field Type

Name: California Bearing Ratio Test Field Type
Brand: EDUTEK INSTRUMENTATION
Price: 2000.0 INR
Availability: InStock

Price 2000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

California Bearing Ratio Test Field Type Specification

Capacity
Loading up to 50 kN Kg

Core Components
Proving Ring, Plunger, Loading Yoke

Measurement Range
0-100% CBR Value

Usage
Checking the quality and stability of road subgrades and bases before paving

Classification
Geotechnical Engineering / Highway Engineering

Power Source
Manual with mechanical advantage

Temperature Range
Ambient Celsius (oC)

Application
Civil Engineering, Highway Construction, Field Quality Control

Voltage
230V Volt (v)

Product Type
Field Soil Strength Tester / In-Situ Pavement Tester

Accuracy
100 % %

Automation Grade
Manual

Operate Method
Manual Penetration: Piston is advanced manually into the soil at a fixed rate using the screw jack, and load/penetration data is recorded

Material
Steel, Cast Iron

Color
Select (Typically Black/Blue Components)

Feature
Highly Efficient

Frequency
50 Hz Hertz (HZ)

Equipment Materials
Mild Steel Construction

Type
Field Type

Display Type
Dial Gauge Type

Dimension (L*W*H)
Approx. 1000 x 400 x 400 mm Millimeter (mm)

Weight
Approx. 70-100 kg Kilograms (kg)

Operation Mode
Hand Operated

Dial Gauge Least Count
0.01 mm

Penetration Rate
1.25 mm/min (standard)

Application
Soil Strength Evaluation in the Field

Finish
Powder Coated Rustproof

Surface Plate Diameter
150 mm

Plunger Diameter
50 mm

About California Bearing Ratio Test Field Type

California Bearing Ratio Test Field Type

To know C.B.R. Values in situ, it is useful in determining the load carrying capacity in the field when in-place density and water contents are such that the degree of sturation is 80 % or greater, when material is conhensionless and coarse grained, such that it is not effected by changes in water contents and when the material has been in-place for considerable time. The loading is effected by means of a mechanical load frames which can be fixed to the under side of a truck.Salient

Features Specifications

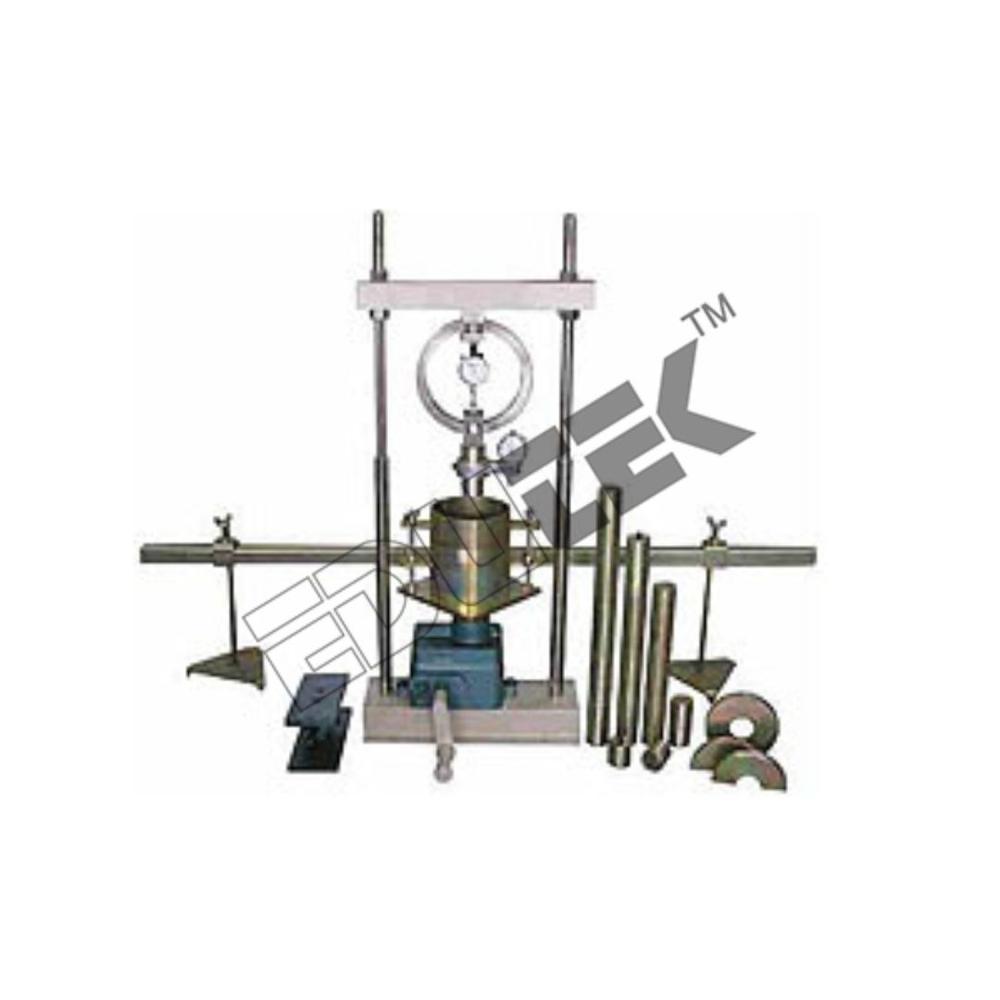

Mechanical screw loading jack, 10,000 kg. capacity with U-bracket and swivel head. Penetration piston, 50 mm dia. threaded at the upper end. Extension rods consisting of 2 lengths 5 cm. 2 lengths 10 cm., 1 length 30 cm.,1 length 50 cm., and 1 length 100 cm., used as spacers between the proving ring and penetration piston. The lengths are machined from steel tubing. Connector set, has eight connectors for coupling the penetration piston and proving ring assembly either directly or through extension pieces. Dial gauge support of seamless pipe construction. It stands 30 cm high and 45 cm wide at the base. Provided with a quick release screw type clamp capable of sliding and locking anywhere along 2 meter length of the bridge. Supplied with annular metal weight 5 kg., 250 mm dia with 53 mm dia central hole, Slotted metal weight 5 kg., 215 mm to 250 mm dia with 53 mm dia slot, 2 Nos. Slotted metal weights, 10 kg., 215 mm to 250 mm dia with 53 dia slot 2 Nos.

Highly Efficient and Accurate Field Testing
The CBR-FT-100 California Bearing Ratio Test Field Type enables precise evaluation of soil strength directly on-site. Its 100% accuracy and efficient manual operation make it an essential tool for assessing subgrade and subbase materials in road and pavement construction. The equipments robust mild steel construction ensures long-lasting use even under demanding field conditions.

User-Friendly Design and Durable Build
Built with powder-coated, rustproof materials, this field CBR testing apparatus is engineered for reliability and easy handling in both laboratory and outdoor environments. Its hand-operated mechanism, combined with a clear dial gauge display, offers seamless control and straightforward operation, tailored for technicians seeking consistent, repeatable test results.

FAQs of California Bearing Ratio Test Field Type:

Q: How is the California Bearing Ratio Test Field Type operated in the field?

A: This CBR Field Type equipment is manually operated using a hand lever to apply loading up to 50 kN through a mechanical system, allowing for precise control and accurate readings during field testing.

Q: What is the main purpose of using this CBR Field Type apparatus?

A: The primary application is to evaluate the strength of soil subgrades and subbases, which is critical for road and pavement construction projects to ensure proper bearing capacity and longevity of infrastructure.

Q: When should the CBR Field Type test be performed?

A: The test is ideally conducted during site investigations before construction commences, or when assessing soil conditions for ongoing quality control during major earthworks or road-building processes.

Q: Where can this equipment be used?

A: This CBR Field Type apparatus is suitable for both laboratory environments and field sites, making it versatile for a wide range of soil testing scenarios encountered by surveyors, engineers, and contractors.

Q: What are the core components included with this CBR Field Type equipment?

A: The system is equipped with a proving ring, plunger (50 mm diameter), loading yoke, 150 mm surface plate, and a sensitive dial gauge with a least count of 0.01 mm, ensuring complete and reliable testing.

Q: How does the powder-coated rustproof finish benefit the equipment?

A: The powder-coated and rustproof finish increases the equipments durability by protecting against corrosion, making it suitable for extended field use in various climatic conditions.

Q: What advantages does the mechanical advantage provide during operation?

A: The mechanical system with manual operation allows users to exert high loading force efficiently, reducing operator fatigue while maintaining accurate and repeatable penetration rates for reliable CBR values.
