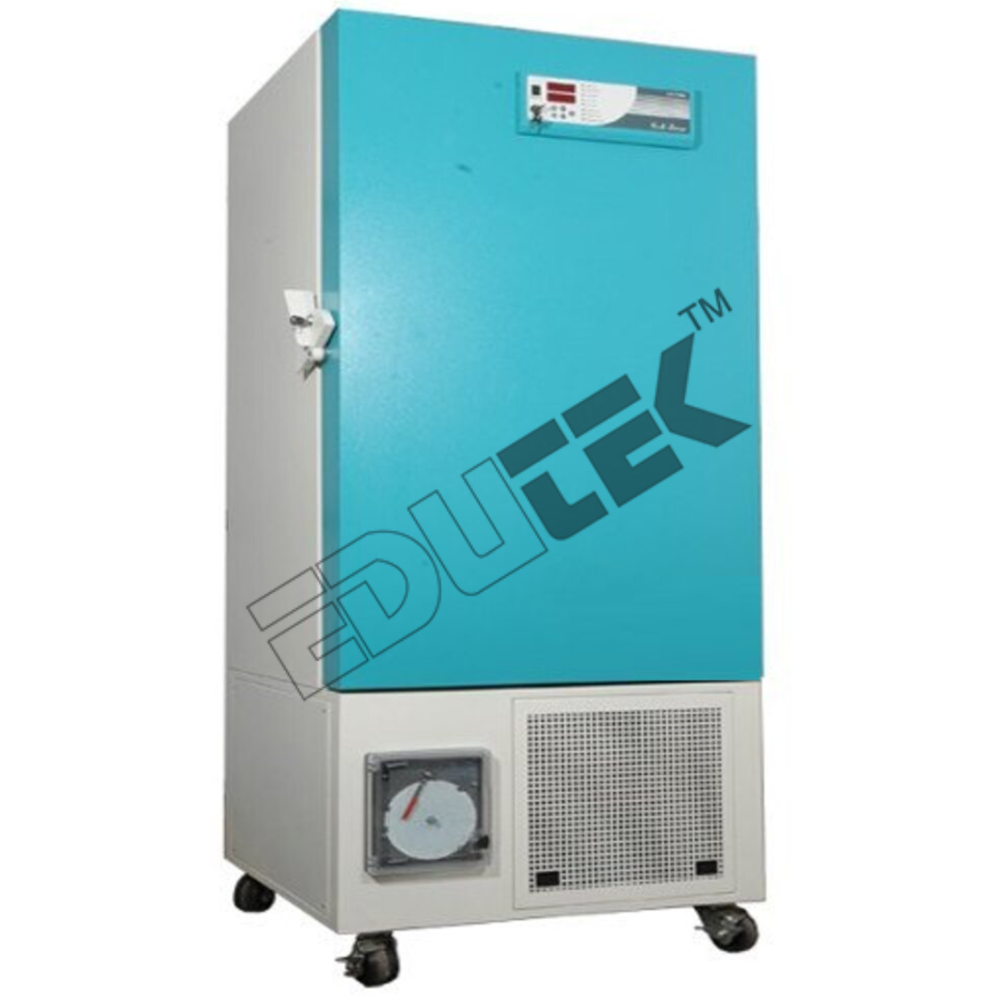

Blood Bank Freezers

Get a Price/Quote

Blood Bank Freezers Specification

Model No
BBF-180

Feature
Highly Efficient

Temperature Range
-20C to -40C

Measurement Range
-40C to -20C

Core Components
Compressor, Temperature Controller, Door Gasket, Shelves

Automation Grade
Automatic

Capacity
180 L (other capacities available)

Power Source
Electric

Voltage
220 V

Accuracy
100 %

Frequency
50 Hz

Equipment Materials
Powder-coated mild steel with stainless steel inner chamber

Type
Blood Bank Freezer

Usage
Laboratory

Display Type
Digital LED Display

Dimension (L*W*H)
650 x 650 x 1100 mm

Weight
Approx. 120 kg

About Blood Bank Freezers

Blood Bank Freezers

Blood bank Freezers : These blood banks are designed to meet all modern requirements for conserving whole blood and other specific products used in medicine such as vaccines, reagents, cultures, processing and storing of blood.

Standard double walled construction, inner chamber made of stainless steel sheet, outer made of thick mild steel sheet powder coated paint and gap filled with glass wool for temp. Insulation. Complete with face lifting door having locking arrangement. Also having a transparent plexiglass door. Internal cabinet lighting is provided by lamp which is illuminated whenever door is open.

Temperature is maintained by a digital temp. Controller-cum-indicator within 4C 6C and trigger audio-visual alarm in case of temp. Fluctuations. A door operation alarm is also provided along with power failure alarm as a safety device. Drawers have been provided to hold blood bottles or bags. A sealed compressor unit and cooling coil running throughout the chamber for thermal uniformity. It works on 220V AC 50Hz single phase. Whole unit is fitted with castor wheels for ease of mobility.

Capacity :

85 ltr. - 50 blood bags
165 ltr. - 110 blood bags
200 ltr. - 160 blood bags
280 ltr. - 240 blood bags
400 ltr. - 300 blood bags

Optionals :

Digital temp. indicator-cum-controller with computer data logger.
Weekly temperature recorder
Automatic voltage stabilizer 3 KVA

Note : In refrigerated equipments voltage stabilizer is must. Guarantee invalid in case of non use of stabilizer.

Advanced Temperature Control and Safety

This Blood Bank Freezer ensures precise temperature management running from -20C to -40C, crucial for preserving blood products. The audio-visual alarm system promptly alerts users to any temperature fluctuations or power failures, safeguarding the stored contents. The digital LED display provides at-a-glance monitoring, while optional USB data logging supports precise record-keeping for compliance.

Robust, Thoughtful Design

Built with a solid insulated door featuring a lock and heavy-duty locking caster wheels, this freezer is both secure and mobile. Its durable SS-304 stainless steel inner chamber and powder-coated mild steel outer body are made for longevity and easy cleaning. Adjust the four shelves to your storage needs, maximizing capacity and organization.

FAQs of Blood Bank Freezers:

Q: How does the audio-visual alarm system in the Blood Bank Freezer work?

A: The audio-visual alarm system automatically alerts users if there is any deviation in temperature from the set range or in case of power failure. This dual-sensory notification system helps ensure quick response and continuous protection of stored blood products.

Q: What are the benefits of the optional USB temperature data logger feature?

A: The optional USB temperature data logger enables automated recording of temperature history, supporting easier monitoring, audits, and regulatory compliance. You can easily access and extract data for further analysis or reporting purposes.

Q: When should the adjustable shelves be rearranged, and what advantage does this offer?

A: The four adjustable shelves should be rearranged when accommodating different sizes or volumes of blood bags and plasma containers. This flexibility maximizes freezer space and organization, allowing efficient storage based on current laboratory requirements.

Q: Where is the Blood Bank Freezer most effectively used?

A: This freezer is ideally used in laboratory and clinical settings, particularly in blood banks, hospitals, and research centers, where controlled, stable low temperatures are essential for safe storage of blood and plasma.

Q: How does the freezer ensure energy efficiency and environmental safety?

A: The freezer utilizes a CFC-free, environment-friendly refrigerant, minimizing its environmental footprint. Its design is highly efficient, providing reliable cooling while conserving energy, making it suitable for sustainable laboratory practices.

Q: What kind of maintenance process does the Blood Bank Freezer require?

A: Routine maintenance primarily involves cleaning the stainless steel inner chamber and inspecting core components like the compressor and door gasket. Regular checks ensure optimal operation and extend the units service life.

Q: What security features are present to protect against unauthorized access?

A: The solid, insulated door is equipped with a locking mechanism, preventing unauthorized access and ensuring that only designated personnel can access the stored blood and plasma samples.
