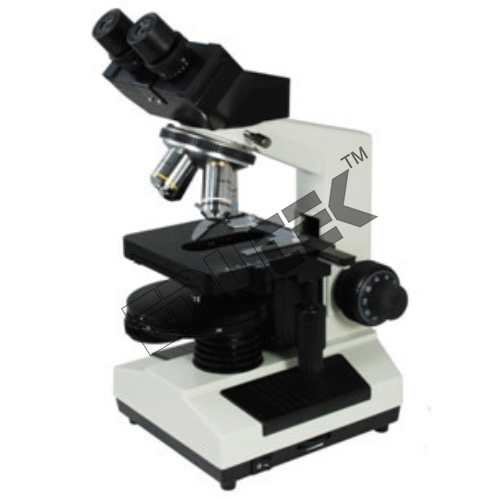

Binocular microscope with LED illumination

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Binocular microscope with LED illumination Specification

Features
Ergonomic design, long working hours, energy efficient, maintenance free LED illumination

Focus System
Coaxial coarse and fine focusing

Spare Parts
Supplied with spare lamp, fuse, dust cover and power cord

Theory
Biological Microscope

Drawtube
Binocular

Focal Distance
Mechanical tube length: 160 mm

Magnification
40X - 1000X

Dimensions
Approx. 360 mm (H) x 220 mm (W) x 150 mm (D)

Focus Range
Coarse and Fine focus adjustment

Eyepieces
WF10X (Wide field)

Eyepiece Tube
Inclined at 45

Illumination
Built-in LED illumination with variable intensity control

Coarse Adjustment Range
Range up to 20 mm

Fine Adjustment Range
Graduated to 2 m precision

Working Stage
Mechanical stage 125 x 115 mm

View Head
Binocular, rotatable 360

Interpupillary Distance
55 to 75 mm adjustable

Objective Achromatic
4X, 10X, 40X (spring), 100X (oil, spring)

Condenser
Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

Light Source
High brightness white LED, 3W, rechargeable or mains operated

Binocular microscope with LED illumination Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
100 Pieces Per Month

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
CARTON BOX, EXPORT LEVEL PACKAGING AVAILABLE

Main Export Market(s)
Asia, Middle East, Africa, Western Europe, Eastern Europe

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About Binocular microscope with LED illumination

Technical Specification:
Type:Binocular LED microscope with LED illumination.
Body: Ergonomic design, metal base 224x167 mm
Objectives: SP, ACHRO, 4X / 0.l0, 10X / 0.25,20X / 0.4, 100X / 1.25.
Magnification:Range from 40X-1000X.
Illumination:3W LED lighting with long life.
Stage:Double-layer mechanical platform,134x142 mm.
Viewing Head:360 rotating arc type binoculartube, inclined 30, with Antifungal treatment.
Nose Piece:Quadruple.
Eyepiece:WF 10X / 18 wide field eyepiece.
Condenser:ABBE light field capacitor N.A 1.25 with iris diaphragm, variable in height.

Accessories
Abrasive glass filter
Dust protection
Natural light mirror for outdoor use.

Features:
Protection for the sample.
Fine and coarse coaxial focus.

Uses:

In Biological, Histological Field and pathological Field.
In Medical colleges
In Laboratories

In Institutes

Advanced Optical Performance

The microscope uses DIN Standard objectives, producing exceptional high-contrast images. Achromatic objectives (4X, 10X, 40X spring, 100X oil/spring) enhance clarity and color fidelity, while the WF10X wide-field eyepieces with 45 inclined drawtube offer comfortable viewing during extended sessions.

Ergonomic & Reliable Construction

Built with a robust metal frame and anti-rust finish, this instrument withstands demanding lab environments. The mechanical stage (125x115 mm) with double layer and precise movement ensures easy sample manipulation. Its ergonomic design minimizes fatigue during long hours of observation.

Flexible Illuminaton & Power Supply

Equipped with maintenance-free, high-brightness 3W LED illumination, the microscope allows variable light intensity adjustments for optimal visualization. It supports both AC power (110-240V) and rechargeable battery operation, making it ideal for both lab and field applications.

FAQs of Binocular microscope with LED illumination:

Q: How does the diopter adjustment enhance microscope usability?

A: The diopter adjustment, located on the left eyepiece, enables users to fine-tune focus differences between their eyes, resulting in sharper, more personalized images and reduced eye strain during lengthy examinations.

Q: What is the benefit of the quadruple ball bearing revolving nosepiece?

A: This nosepiece design ensures smooth and precise objective switching, minimizing vibration and aligning objectives accurately for repeatable, high-quality imaging in biological studies.

Q: When would I use the oil immersion 100X objective?

A: The 100X objective (oil, spring) is used for high magnification needs, particularly for observing fine cellular details. It requires a drop of immersion oil between the slide and objective to improve image resolution.

Q: Where can the microscope be operated using battery power?

A: Thanks to its rechargeable battery option, the microscope can be used in fieldwork, remote classrooms, or any location without direct AC power, providing up to several hours of portable operation.

Q: What process ensures precise slide movement and positioning?

A: The double layer mechanical stage with slide holder and graduated X-Y axes (76 mm and 50 mm range) enables controlled and accurate movement, allowing detailed scanning of samples with minimal effort.

Q: How should the LED illumination be used for optimal results?

A: Adjust the built-in LED lights variable intensity control to match sample requirements, enhancing visibility while minimizing glare. This ensures clear observation under varying light conditions and sample types.

Q: What are the benefits of the ergonomic design and maintenance-free illumination?

A: Ergonomic features like the inclined head, adjustable interpupillary distance, and 360 rotation make extended sessions comfortable. The energy-saving, maintenance-free LED reduces upkeep and operating costs while enabling long working hours.
