Specification:

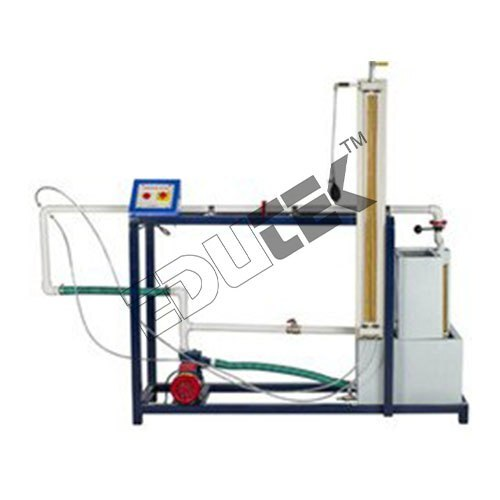

BEND METER TEST RIG
Description:
The apparatus consists of a pipelinethat contains one Bend meter.
The pressure tapings from the Bendmeter is taken to differential manometer to measure pressure difference.
Present set-up is self-containedwater re-circulating unit, provided with a sump tank and a centrifugal pumpetc. Flow control valve and by-pass valve are fitted in water line to conductthe experiment on different flow rates. Flow rate of water is measured with thehelp of measuring tank and stop watch.
Experimentation:
To demonstrate the use of Bend meteras flow meter.
To determine co-efficient of dischargefor given Bend meter.
Product Details:
Type: Assortment Set
Voltage: 230 Volt (v)
Material: Metal






Price:
Minimum Order Quantity : 1 Piece
Usage : To Study Friction Losses in Pipes
Feature : Corrosion Resistant, Easy Installation
Weight : Approx. 2535 kg
Accuracy : +/ 1% approx.
Dimension (L*W*H) : 1200 mm x 450 mm x 900 mm
