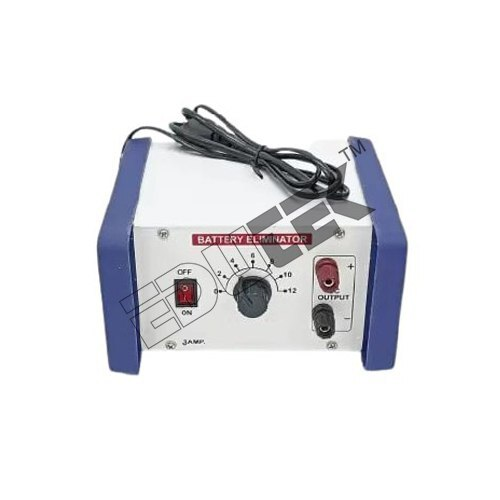

Send InquiryBATTERY ELIMINATOR 2-12 VDC/3 AMPS
MOQ : 1 Piece
BATTERY ELIMINATOR 2-12 VDC/3 AMPS Specification
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Components
- Transformer, Rectifier, Voltage Regulator, Protection Fuse
- Display Type
- No Digital Display
- Output
- 2-12 VDC
- Power Supply
- 230V AC, 50Hz
- Power Source
- AC mains powered
- Features
- Adjustable output, Overload protection, Sturdy metal case
- Input
- 230V AC
- Product Type
- BATTERY ELIMINATOR 2-12 VDC/3 AMPS
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Rated Voltage
- 2-12 VDC Adjustable
- Supply Voltage
- 2 V to 12 V DC
- Size
- Standard Compact
- Dimension (L*W*H)
- 180 mm x 120 mm x 95 mm (approx.)
- Function
- Converts mains AC to variable DC voltage for operating electronic instruments without batteries
- Color
- Black
- Weight
- Approx. 1.2 kg
- Capacity
- 3 Amps
- Current Rating
- 3 Amps
- Thickness
- Standard casing (approx. 2mm)
- Frequency
- 50 Hz
- Cable Included
- Power cord supplied
- Operating Temperature
- 0C to 45C
- Regulation
- Fine and coarse voltage knobs
- Output Polarity
- Both positive and negative available
- Fuse Protection
- Yes, replaceable
- Output Terminals
- Red and black binding posts
- Ripple
- Less than 10 mV at full load
- Mounting Type
- Table-top
- Cooling
- Natural Air Cooled
BATTERY ELIMINATOR 2-12 VDC/3 AMPS Trade Information
- Minimum Order Quantity
- 1 Piece
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About BATTERY ELIMINATOR 2-12 VDC/3 AMPS
Specification:
BATTERYELIMINATOR 2-12 VDC/3 AMPS
Housed insuperior finished steel cabinets having 4 mm socket terminals, on/off switch,indicator light
Double woundtransformer & full wave bridge rectifiers
Input: 230 voltsA.C
Output :2,4,6,8,10 and 12 V D.C
With ON/OFFswitch and indicator
Precise Adjustable Voltage Control
With both fine and coarse voltage regulation knobs, users can accurately set output voltage according to their needs. This flexibility makes it easy to power a variety of electronic instruments in the 2V to 12V DC range, efficiently emulating battery sources for reliable bench testing.
Reliable Safety & Protection Features
Equipped with a replaceable fuse, the unit provides safeguard against current overload, ensuring the safety of both the instrument and connected devices. Natural air cooling and a sturdy metal casing contribute to dependable, sustained performance during operation in ambient temperatures up to 45C.
User-Friendly Tabletop Design
The compact, table-top mounting style allows it to be placed conveniently in laboratories, workshops, and educational settings. Its straightforward binding posts and included power cord simplify setup, enabling quick installation and hassle-free usage for professionals, teachers, and students.
FAQs of BATTERY ELIMINATOR 2-12 VDC/3 AMPS:
Q: How do I adjust the output voltage on the BATTERY ELIMINATOR 2-12 VDC/3 AMPS?
A: You can adjust the output voltage by turning the fine and coarse regulation knobs on the front panel. This allows you to select a voltage between 2V and 12V DC, suitable for your specific electronic instrument requirements.Q: What is the benefit of using this battery eliminator instead of batteries?
A: This device provides a stable and adjustable DC supply, removing the need for frequent battery replacement. It delivers reliable power for engineering electronics instruments, revolutionizing laboratory and educational settings by ensuring consistent testing conditions.Q: When should I replace the fuse and how do I do it?
A: Replace the fuse if you notice power loss or the unit stops functioning due to possible overload. To change the fuse, disconnect the unit from the mains, access the fuse holder, and simply insert a compatible new fuse as per manufacturers instructions.Q: Where can this battery eliminator be used most effectively?
A: It is most effective in electronic engineering labs, research institutions, educational facilities, and workshops where variable voltage DC power is needed to operate various electronic devices and instruments without batteries.Q: What is the process for connecting electronic instruments to this unit?
A: Firstly, plug the power cord into the AC mains supply. Use the red and black binding posts to connect your instruments leads, ensuring proper polarity. Adjust the voltage as required using the regulation knobs before powering your instrument.Q: How does the overload protection feature work?
A: The built-in replaceable fuse acts as overload protection by automatically disconnecting power in case of excessive current draw, safeguarding both the battery eliminator and connected electronic instruments.Q: Can I use this device outdoors or only indoors?
A: It is designed primarily for indoor use, specifically on table-tops in controlled environments. Operating temperature ranges from 0C to 45C, and proper ventilation should be ensured for optimal safety and performance.
