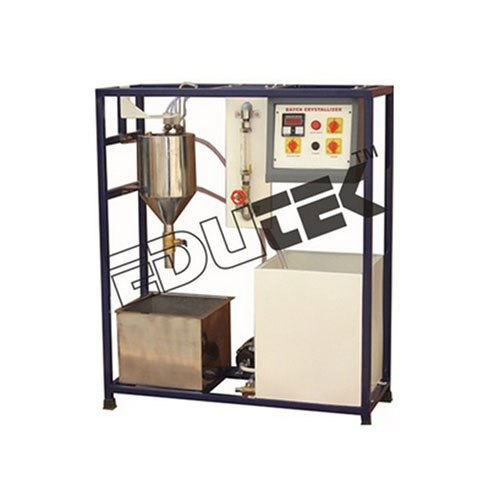

BATCH CRYSTALLIZER APPARATUS

About BATCH CRYSTALLIZER APPARATUS

Specification:

BATCH CRYSTALLIZER APPARATUS

Description:

Crystallization is the formation ofsolid particles within a homogeneous phase of saturated liquid.

Its wide use has a two-fold basis, acrystal formed from an impure solution is itself pure and crystallizationaffords a practical method of separating.

This operation involves both heat andmass transfer. Cooling type agitated batch crystallizer set up consists of anopen jacketed stirred vessel provided with water heating & coolingarrangement.

The feed is prepared in thecrystallizer itself with hot water and stirrer. The hot saturated solution inthe crystallizer is then cooled by circulation of cooling water and crystalsare formed.

Experimentation:

To study the performance of a BatchCrystallizer.

To determine the crystal yield andthe efficiency of crystallizer.

Utilities Required:

Water Supply.

Drain.

Electricity Supply: 1 Phase, 220 VAC, 1.5 kW.

Required Chemicals.

Technical Details:

Crystallizer (Jacketed Type): Material Stainless Steel, Cap. 2Ltrs. with conical bottom

Stirrer: FHP, Variable Speed.

Heater: Nichrome wire heater

Cooling Water Tank: Material Stainless Steel, Capacity30 litre fitted with Pump.

Flow measurement: Rotameter for cooling water.

Pump: FHP.

Receiving Tank: Material Stainless Steel , Capacity 2 litre withSS sieve

Temp. Sensors: RTD PT-100 type

Control panel comprises of: Digital Temp. Indicator: 0-199.90Cwith multi-channel switch and Standard make on/off switch, Mains Indicator etc.
