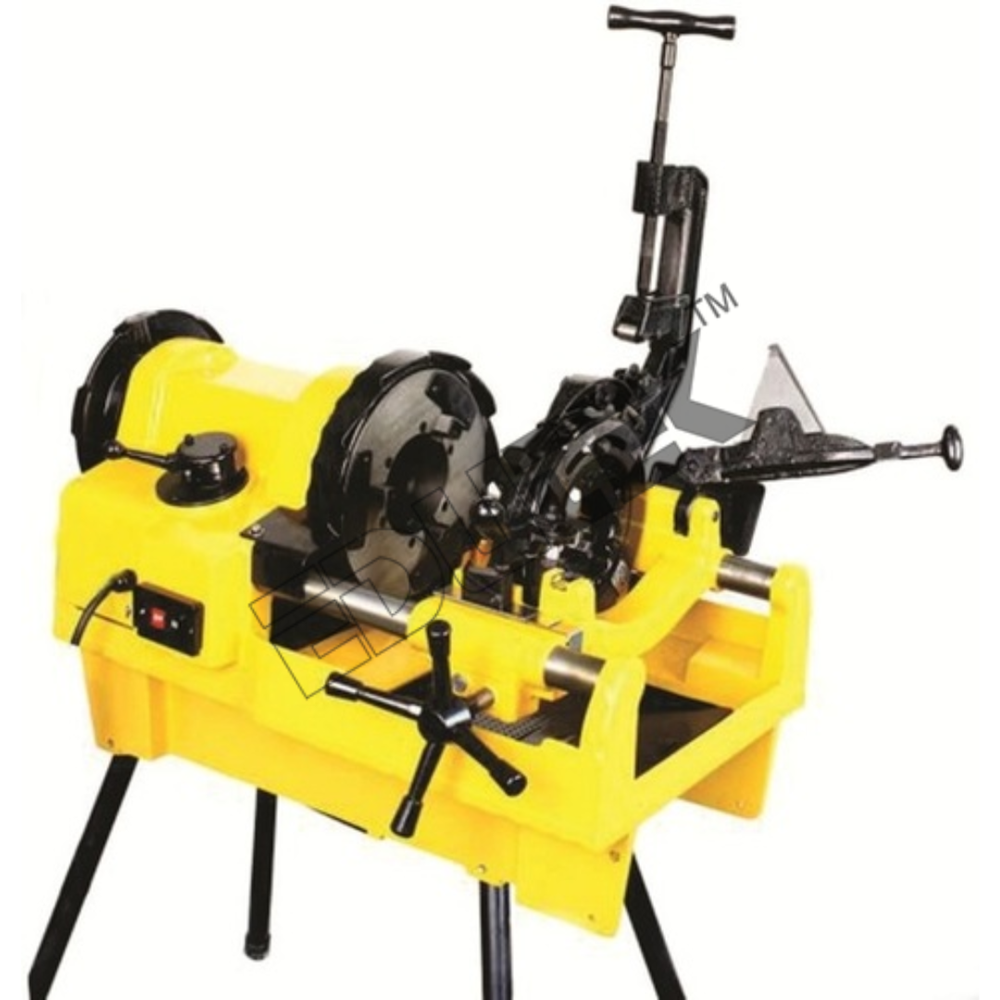

Automatic Pipe Threading Machine

Get a Price/Quote

Automatic Pipe Threading Machine Specification

Port Size
1/2 to 6 (customizable)

Equipment Type
Automatic Pipe Threading Machine

Display Type
Digital HMI Touchscreen

Temperature
5C to 45C

Features
Self-centering chuck, auto lubrication, safety interlocks

Specimen Size
Pipe length up to 6 meters

Max Height
1800 mm

Mounting Type
Floor Mounted

Hardness
Suitable for high steel hardness pipes

Accuracy
0.05 mm

Test Range
Standard pipes and tubes

Resolution
0.01 mm

Number of Specimens
Single Operation

Operating Voltage
415V

Response Time
Instantaneous threading operation

Automation Grade
Automatic

Power Supply
415V, 3 Phase, 50 Hz

Application
Industrial pipe threading

Measuring Range
1/2 to 6 pipe diameter

Humidity
Up to 80% RH (non-condensing)

Interface Type
USB, Ethernet

Frequency
50 Hz

Usage
Pipe thread cutting for GI, MS, and PVC pipes

Capacity
Up to 6 pipe threading

Machine Weight
1450 kg

Test Speed
Variable, up to 60 RPM

Test Width
Adjustable as per pipe size

Test Stroke
Up to 1600 mm

Control Mode
Fully Automatic PLC Control

Automatic Pipe Threading Machine Trade Information

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Automatic Pipe Threading Machine

AUTOMATIC PIPE THREADING MACHINE

Voltage : 380V/220V
Hydraulic Power(W) : 2.2- 4KW
Dimension(L X W X H) : 1500x 1380 X 1140 mm
Weight : 1100 Kg
Outer diameter : 120-170mm
Inner diameter of rollers : 54mm
Spindle Center distance : 120-240mm
Automatic High Speed Screw Threading Rolling Machine

Industrial-Grade Performance with Precision

Designed for demanding environments, this machine combines high motor power, advanced automation, and robust construction. Its ability to handle pipe diameters from 1/2" to 6" and thread lengths up to 150mm brings flexibility for diverse industrial applications, ensuring consistent, accurate results every time.

Ease of Operation and Enhanced Safety

Featuring a fully automatic PLC control mode with a digital HMI touchscreen, operators can quickly set parameters and start threading with minimal manual intervention. Built-in safety systems such as emergency stop, overcurrent protection, and safety interlocks provide comprehensive safeguards during use.

Durable Construction and Maintenance-Friendly Design

Heavy-duty cast iron ensures machine stability and extended service life, while integrated systems like automatic lubrication and coolant pumps reduce wear and keep maintenance simple. Standard accessories and quick-change chucks speed up changeovers and make ongoing operation hassle-free.

FAQs of Automatic Pipe Threading Machine:

Q: How does the automatic pipe threading machine ensure threading accuracy?

A: The machine uses a fully automatic PLC control system and a digital HMI touchscreen to set precise threading parameters. It achieves a threading accuracy of 0.05 mm and a resolution of 0.01 mm, supported by a robust self-centering chuck and rigid cast iron construction to minimize alignment errors and vibrations.

Q: What types and sizes of pipes can this machine handle?

A: This machine is suitable for threading GI, MS, and PVC pipes with diameters ranging from 1/2 inch to 6 inches. It can accommodate pipe lengths up to 6 meters and is adept at handling standard and custom thread types, including BSPT, NPT, and Metric.

Q: When and where is this machine typically used?

A: The machine is ideal for industrial environments requiring high-volume, accurate thread cuttingsuch as plumbing, manufacturing units, fabrication shops, and facilities dealing in pipe installations. It operates efficiently in ambient temperatures from 5C to 45C and humidity levels up to 80% RH.

Q: What is the process for setting up and operating this threading machine?

A: Operators mount the machine on a solid workshop floor, connect it to a 415V 3-phase supply, and use the digital HMI to input threading parameters. The integrated quick-change, self-centering chuck and automatic lubrication system streamline setup and operation, while the automatic coolant pump maintains optimal cutting conditions throughout the threading process.

Q: How does the integrated coolant and lubrication system benefit users?

A: These systems work automatically to deliver continuous lubrication and cooling to the threading dies and pipes during operation. This reduces tool wear, extends service intervals, improves surface finish of threads, and helps keep the work environment safer and cleaner.

Q: What safety features are implemented on this equipment?

A: Safety is prioritized through mechanisms like emergency stop, overcurrent protection, and safety interlocks. These features protect operators and equipment against accidental start, electrical overload, and hazardous scenarios, ensuring a safe working environment.

Q: What advantages does the self-centering quick-change chuck provide?

A: The self-centering, quick-change chuck simplifies and accelerates pipe setup, reducing downtime between batches and ensuring secure, repeatable clamping for various pipe sizes. This leads to higher productivity and consistently accurate threading results.
