Send InquiryAutomatic Elisa Plate Analyzer
Price 100.0 INR/ Piece
MOQ : 1 Piece
Automatic Elisa Plate Analyzer Specification
- Material
- ABS Plastic, Stainless Steel
- Color
- White with Blue Accents
- Usage
- ELISA Plate Analysis
- Product Type
- Automatic Elisa Plate Analyzer
- Power
- 100-240 V AC
- Voltage
- 50-60 Hz
- Operate Method
- Fully Automatic, Touch Screen
- Capacity
- 1 Elisa Plate (96 Wells)
- Application
- Clinical Diagnostics, Research Laboratories
- Dimension (L*W*H)
- 48 cm x 32 cm x 20 cm
- Classification
- Laboratory Instrument
- Weight
- 9.5 kg
- Detection Method
- Photometric, up to 4 wavelengths
- Calibration
- Automatic Calibration
- Safety Features
- Error Alerts, Overload Protection, Self-Diagnosis
- Interface
- USB, LAN, RS232
- Plate Types Supported
- Flat, U, V Bottom Plates
- Optical System
- 8-Channel Optical Fiber
- Software
- Integrated Data Management, QC & Reporting
- Printer Connectivity
- Supported (External Printer)
- Reading Speed
- <8 Seconds per Plate
- Wavelength Range
- 400 nm to 750 nm (standard filters: 405nm, 450nm, 492nm, 630nm)
- Display
- 7-inch High-Resolution Touch Screen
- Humidity & Temperature Range
- Humidity: 10%90% RH, Temp: 10C40C
- Data Storage
- 10,000+ Test Results Internal Memory
Automatic Elisa Plate Analyzer Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA)
- Sample Available
- Yes
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Packaging Details
- carton box, export quality also available
- Main Export Market(s)
- Africa, Asia, Eastern Europe, Western Europe, Middle East
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001 ,CE
About Automatic Elisa Plate Analyzer

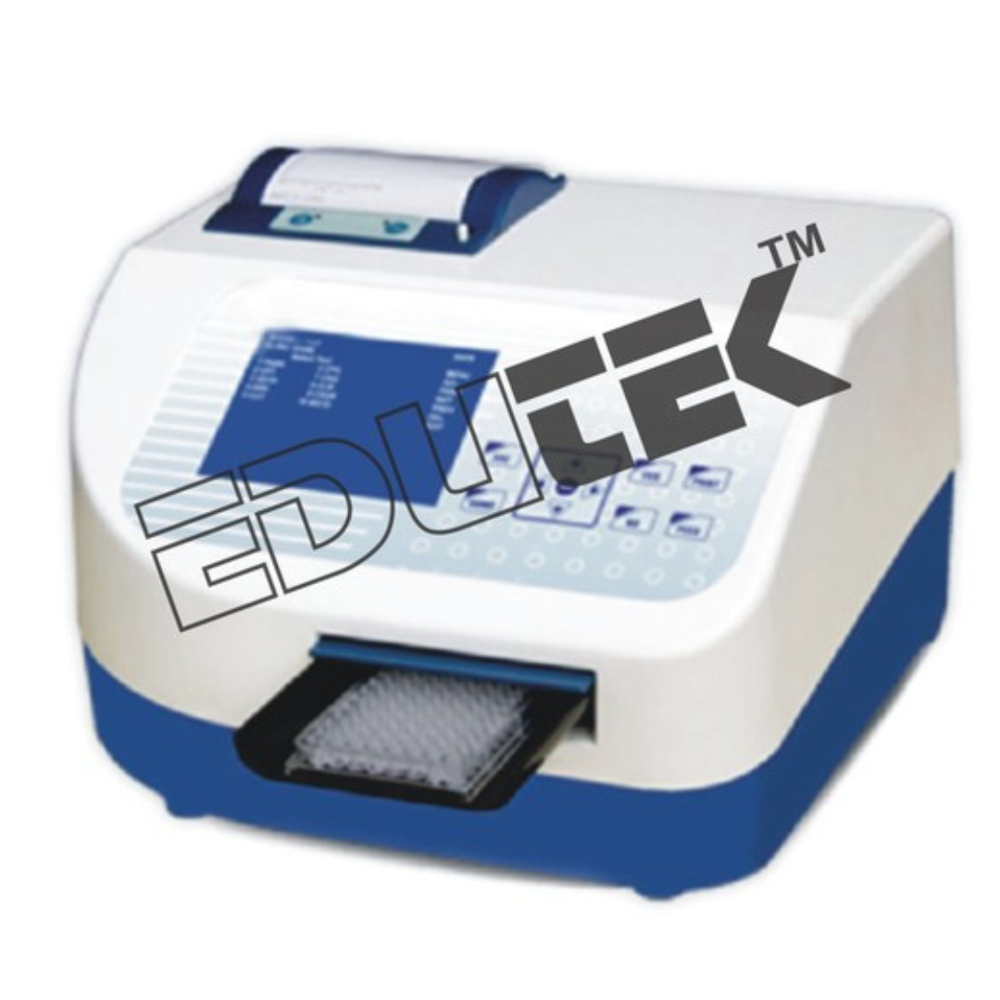

AUTOMATIC ELISA PLATE ANALYZER ETA-35
Features:
- Robust system with built-in stabilizer.
- Built in Shaker with variable speed & duration.
- Results printing in matrix mode format.
- Option to run multiple blank in Cut-Off mode.
- Bichromatic Readings.
- Ability to read from any strip in a single plate.
- Extensive Curve Plotting.
- Unique circuitry for long life of lamp.
- Facility to enter clinic name.
Automatic ELISA plate analyser with user friendly and sophisticated on board software. It is a stand alone system
for all routine immunoassays, Biochemicals, hormones and drug levels. Its versatile and extensive software
supports most of the calculations required for interpretation of results. It is economical, reliable and high precision
machine.
Intuitive Touch Screen Operation
The analyzer is equipped with a 7-inch high-resolution touch screen, simplifying navigation and enabling users to easily input commands and monitor processes in real time. This design enhances workflow efficiency, reduces operator error, and makes the device accessible for users of varying technical backgrounds.
Precision and Versatility in Detection
Supporting flat, U, and V bottom plates, the analyzer employs a photometric method with up to four wavelengths for accurate quantitative analysis. The 8-channel optical fiber system ensures consistent and reliable measurements, making it suitable for a wide array of ELISA assays in clinical and research settings.
Seamless Data Management and Connectivity
Internal memory stores over 10,000 test results, and multiple data interface optionsincluding USB, LAN, and RS232allow for straightforward data transfer and integration with laboratory information systems. Printer connectivity enables quick reporting, while integrated QC, calibration, and alert features promote reliable results and laboratory safety.
FAQs of Automatic Elisa Plate Analyzer:
Q: How does the Automatic Elisa Plate Analyzer ensure accurate and reliable results?
A: The device utilizes an advanced photometric detection method with up to four selectable wavelengths and an 8-channel optical fiber system, delivering precise measurements for various ELISA assays. Automatic calibration, self-diagnosis, and quality control features further ensure result reliability.Q: What plate types are compatible with this analyzer?
A: This analyzer is compatible with flat, U, and V bottom microplates, supporting up to 96 wells per plate. Its adaptable design allows users to perform a wide range of ELISA tests in both clinical and research environments.Q: When and where is this analyzer most effectively used?
A: The analyzer is ideal for use in clinical diagnostic centers, hospitals, and research laboratories that require rapid and high-throughput ELISA testing. Its robust construction and versatile plate compatibility make it valuable in various testing scenarios.Q: What is the procedure for operating the analyzer?
A: Operation is fully automatic and initiated through the user-friendly 7-inch touch screen. Users load the plate, select the appropriate assay protocols, and the instrument manages the rest, including calibration, detection, and data reporting. Results can be stored or exported as needed.Q: What benefits does the integrated data management software provide?
A: The built-in software supports comprehensive test result storage (over 10,000 results), quality control, automated calibration, and detailed reporting. It enables efficient workflow management and data sharing through USB, LAN, or RS232 interfaces, and is compatible with external printers for immediate documentation.Q: How is user safety and equipment reliability addressed?
A: Safety is prioritized with features like error alerts, overload protection, and a self-diagnosis system. The instrument is designed for optimal performance within a humidity range of 10%90% RH and a temperature range of 10C40C, ensuring consistent operation in laboratory environments.
