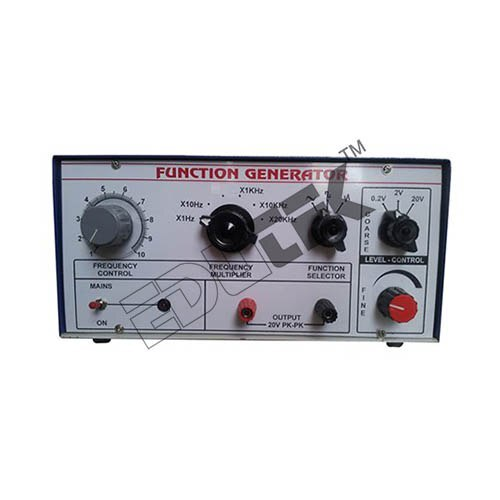

AUDIO FREQUENCY FUNCTION GENERATOR 1HZ TO 200KH

Name: AUDIO FREQUENCY FUNCTION GENERATOR 1HZ TO 200KH
Brand: EDUTEK INSTRUMENTATION
Price: 1600.0 INR
Availability: InStock

Price 1600.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

AUDIO FREQUENCY FUNCTION GENERATOR 1HZ TO 200KH Specification

Power Supply
220V AC, 50Hz

Usage
ENGINEERING ELECTRONICS EQUIPMENTS

Output
Audio frequency waveform (sine, square, triangle)

Resolution
Fine frequency adjustment

Operating Temperature
0C to 50C

Components
Main generator unit, output terminals, power cord

Display Type
Analog/Digital Frequency Meter (varies by model)

Interface
BNC output connector, Banana jacks

Response Time
Instantaneous

Features
Frequency variable, selectable waveform, amplitude adjustment, robust construction

Power Source
Mains Powered

Product Type
AUDIO FREQUENCY FUNCTION GENERATOR 1HZ TO 200KH

Application
ENGINEERING ELECTRONICS EQUIPMENTS

Rated Voltage
220V AC

Supply Voltage
220V AC, 50Hz

Size
Standard Bench-top

Dimension (L*W*H)
260mm x 205mm x 85mm

Function
Audio Frequency Function Generator

Color
Grey/Black

Weight
Approx 2.5 kg

Frequency
1 Hz to 200 kHz

External Frequency Counter Output
Available (optional output)

Frequency Range
1 Hz to 200 kHz (continuous adjustment)

Construction
Heavy gauge steel cabinet for electromagnetic shielding

Amplitude Control
Variable up to 20V peak-to-peak (no load)

Output Impedance
Approx 600 Ohm

Controls
Waveform selector, frequency coarse/fine adjustment, amplitude adjustment, output attenuator

Distortion (Sine Wave)
< 2% (typical)

Cooling
Natural air cooled

Attenuator
Built-in, for output level adjustment

Waveform Purity
High waveform purity, low distortion

Line Fuse
650mA, Slow-blow

Waveform Output
Sine, Square, and Triangle

AUDIO FREQUENCY FUNCTION GENERATOR 1HZ TO 200KH Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About AUDIO FREQUENCY FUNCTION GENERATOR 1HZ TO 200KH

Specifications:

AUDIO FREQUENCY FUNCTION GENERATOR 1HZ TO 200KHZ

Frequency: 1 Hz-200 KHz

This is very useful and versatile Laboratory Instruments withthree basic Sine, square & Triangular wave output

This is completely I.C. Based with frequency range from 1 Hz-200KHz in five-decade ranges amplitude 0-10 V in the step of 0.2 V, 2V & 10 V.

Versatile Waveform Generation

Crafted for engineering electronics applications, this function generator delivers sine, square, and triangle waveforms from 1 Hz to 200 kHz. Continuous frequency adjustment and selectable waveforms provide flexibility for diverse testing requirements, making it a versatile tool in both educational and professional labs.

Precision and Control

Equipped with fine and coarse adjustment controls, variable amplitude up to 20V peak-to-peak, and a built-in attenuator, the unit offers precise control of signal output. High waveform purity and low distortion ensure reliable and accurate test results for your experiments or electronic device evaluations.

Robust Design for Stable Performance

The sturdy steel cabinet shields against electromagnetic interference, safeguarding signal quality. Natural air cooling maintains optimal operating temperature, enhancing durability. Its dependable construction makes it suitable for frequent use in demanding lab environments.

FAQ's of AUDIO FREQUENCY FUNCTION GENERATOR 1HZ TO 200KH:

Q: How do I adjust the frequency and waveform output on the Audio Frequency Function Generator?

A: You can set the desired frequency using the coarse and fine adjustment knobs, allowing for continuous changes from 1 Hz to 200 kHz. The waveform selector enables switching between sine, square, and triangle wave outputs, offering flexibility for various experimental needs.

Q: What benefits does the built-in attenuator provide during operation?

A: The built-in attenuator allows precise control over the output signal level, making it easier to match the generator's output to the requirements of your application or the sensitivity of your device under test.

Q: When is the external frequency counter output needed?

A: The external frequency counter output is optional and is used when you require highly accurate frequency measurements with an external counter. This is particularly useful in calibration or settings where precise frequency monitoring is necessary.

Q: Where can I use this function generator?

A: This function generator is ideal for engineering and electronics laboratories, educational institutions, and testing environments where accurate audio frequency signals are required. Its robust portability and bench-top design make it suitable for various workplace settings.

Q: What is the process for connecting the output to my test device?

A: Connect the output terminals (BNC connector or banana jacks) to your test device. Adjust the waveform type, set the frequency and amplitude as needed, and fine-tune using the controls for optimal signal quality and level.

Q: How does the heavy gauge steel cabinet contribute to its performance?

A: The heavy-duty steel cabinet provides effective electromagnetic shielding, which helps preserve signal integrity and minimizes external interference, ensuring more accurate and stable waveforms.
