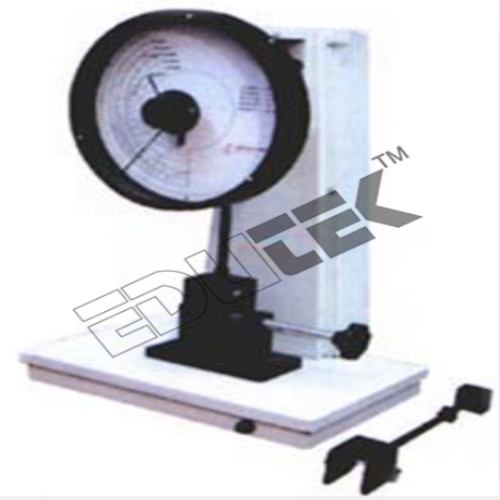

Analogue Izod Charpy Impact Tester
Analogue Izod Charpy Impact Tester
Analogue Izod Charpy Impact Tester
Analogue Izod Charpy Impact Tester
Analogue Izod Charpy Impact Tester
Analogue Izod Charpy Impact Tester
Analogue Izod Charpy Impact Tester
Analogue Izod Charpy Impact Tester
Analogue Izod Charpy Impact Tester
Analogue Izod Charpy Impact Tester
Analogue Izod Charpy Impact Tester
Analogue Izod Charpy Impact Tester
images Send Inquiry
Request To Call Back

Analogue Izod Charpy Impact Tester

Price 500.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Analogue Izod Charpy Impact Tester Specification

  • Max Height
  • Approx. 500 mm
  • Automation Grade
  • Manual
  • Interface Type
  • Mechanical
  • Port Size
  • Standard
  • Features
  • Robust construction, precise measurement, easy calibration
  • Operating Voltage
  • 230V AC
  • Specimen Size
  • 55 mm 10 mm 10 mm (Charpy), 75 mm 10 mm 10 mm (Izod)
  • Resolution
  • 0.1 Joules
  • Equipment Type
  • Analogue Impact Testing Machine
  • Accuracy
  • 1% of indicated value
  • Test Range
  • 0 30 Joules (Charpy), 0 16 Joules (Izod)
  • Display Type
  • Analogue
  • Application
  • Material impact strength testing
  • Mounting Type
  • Floor mounted
  • Measuring Range
  • 0 30 Joules
  • Humidity
  • Up to 85% RH
  • Power Supply
  • 230V AC, 50Hz
  • Frequency
  • 50Hz
  • Number of Specimens
  • Single specimen per test
  • Temperature
  • 10C - 40C
  • Response Time
  • Immediate
  • Usage
  • Laboratory, educational institutes, quality control
  • Capacity
  • Up to 30 Joules
  • Machine Weight
  • Approx. 60 kg
  • Test Speed
  • 3.8 m/s (for Charpy), 3.5 m/s (for Izod)
  • Test Width
  • 10 mm
  • Test Stroke
  • 150 mm
  • Control Mode
  • Manual


Analogue Izod Charpy Impact Tester Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • carton box, export quality also available
  • Main Export Market(s)
  • Asia, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001 ,CE


About Analogue Izod Charpy Impact Tester

 Analogue Izod Charpy Impact Tester
  •     Capacity : Up to 21.68 Joules.
  •     Release angle of pendulum : 150 degree.
  •     Range of four scales : 0-2.71 Joules, 0-5.42 Joules, 0-10.84 Joules and 0-21.68 Joules.
  •     Minimum resolution on scale : 0.02 Joule, 0.05 Joule,0.1 Joule and 0.2 Joule respectively.
  •     Paint : Powder coated.



Precise and Safe Impact Testing

Featuring a manual lever and integrated safety lock, the AIC-25/30 guarantees user safety by preventing accidental pendulum release during specimen setup. Its sturdy construction and precision V-Block system ensure optimal specimen placement and repeatable, accurate measurements for both Charpy and Izod testing methods.


Versatile Applications and Compliance

Engineered to comply with IS 1598 and ASTM D256 standards, this impact tester is ideally suited for material science labs, educational institutions, and quality control sectors. Its flexible test range and compatibility with standard specimen sizes make it suitable for a wide array of materials testing requirements.

FAQs of Analogue Izod Charpy Impact Tester:


Q: How do I operate the Analogue Izod Charpy Impact Tester safely?

A: To safely operate the tester, secure the specimen in the precision V-Block and clamp. Ensure the integrated safety lock is engaged before setting up. Release the pendulum manually only after confirming proper specimen positioning and removing any obstructions.

Q: What kinds of materials can be tested with this machine?

A: This instrument is designed for evaluating the impact strength of a variety of metallic and non-metallic materials that match the specimen size specifications for Charpy (55x10x10 mm) and Izod (75x10x10 mm) tests.

Q: When should the tester be recalibrated?

A: The device should be recalibrated annually or whenever test results appear inconsistent. It is supplied with a calibration certificate and can be easily calibrated using the provided operation manual and included gauge.

Q: Where is this impact tester typically installed?

A: The AIC-25/30 is floor-mounted and intended for use in controlled environments such as material testing laboratories, colleges, research centers, and quality control departments.

Q: What is the testing process for the Izod or Charpy method?

A: Insert a properly prepared specimen in the apparatus, lock it securely, engage the safety mechanism, and manually release the pendulum. The analogue display provides immediate measurement of absorbed impact energy within the specified range.

Q: How does the powder-coated finish benefit users?

A: The powder-coated, corrosion-resistant finish provides long-term durability and protection against harsh laboratory conditions, ensuring consistent performance and easy maintenance.

Q: What are the primary benefits of using this analogue impact tester?

A: Major advantages include precise and immediate analog readings, a 1% accuracy range, robust construction, easy calibration, and compliance with recognized international testing standards, supporting consistent, high-quality test results.
