Send InquiryAggregate Impact Value Test Apparatus
Price 700.0 INR/ Unit
MOQ : 1 Unit
Aggregate Impact Value Test Apparatus Specification
- Core Components
- Base Hammer Cylindrical Cup
- Temperature Range
- Ambient Celsius (oC)
- Measurement Range
- Impact resistance of aggregates
- Power Source
- None
- Warranty
- 1 Year
- Capacity
- STANDARD Pcs/hr
- Automation Grade
- Manual
- Feature
- Used to determine the aggregate impact value
- Model No
- Accuracy
- High %
- Voltage
- None Volt (v)
- Equipment Materials
- Heavy Steel Base, Cast Iron, Steel Rods
- Type
- Aggregate Impact Value (AIV) Tester
- Usage
- Used for determining the Impact Value (percentage of material passing 2.36mm sieve after impact)
- Display Type
- None
- Dimension (L*W*H)
- 400X450X800 Millimeter (mm)
- Weight
- 12 Kilograms (kg)
About Aggregate Impact Value Test Apparatus

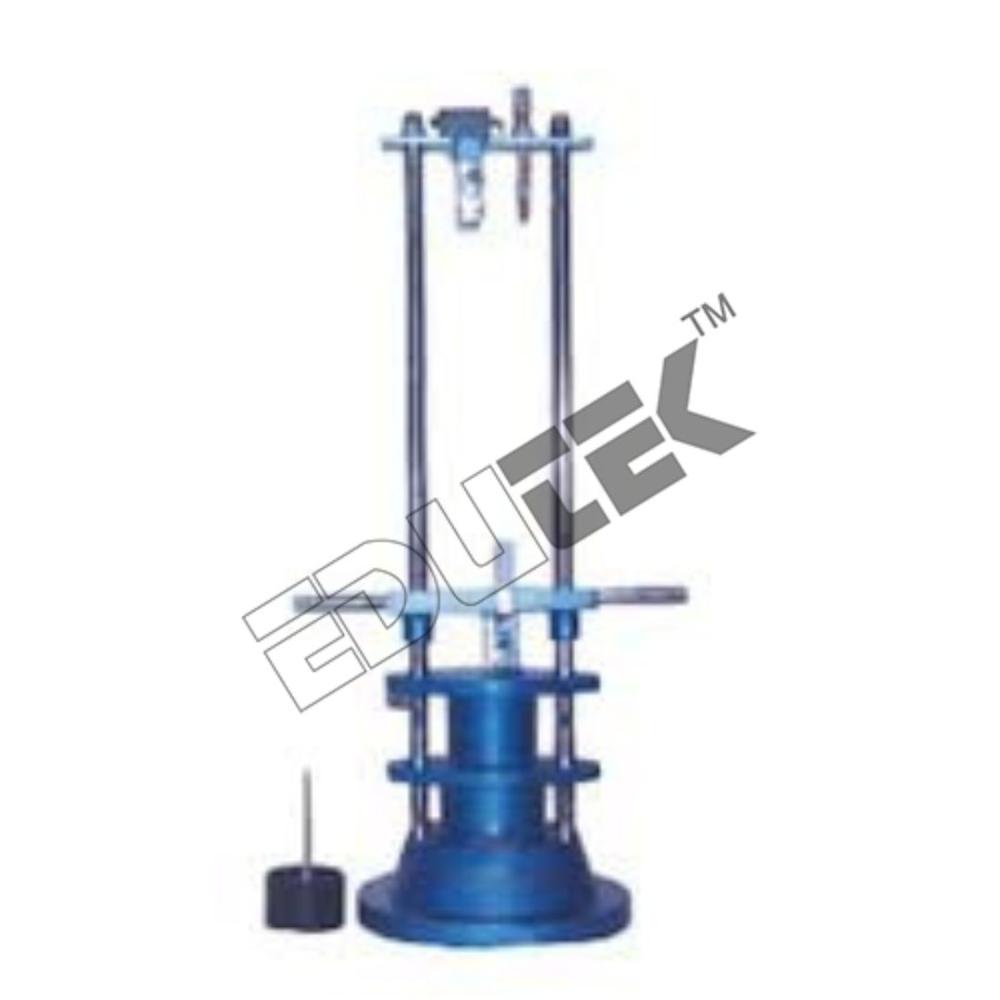

Aggregate Impact Value Test ApparatusAggregate Impact Value Test Apparatus is used for determining the aggregate impact value. The Sturdy Construction consists of a base and support columns to form a rigid framework around the quick release trigger mechanism to ensure an effective free fall of the hammer during test. The free fall can be adjusted through 380 5mm. The hammer is provided with a locking arrangement. Aggregate impact value test apparatus is supplied complete with a cylindrical measure of 75mm dia x 50mm depth, an automatic blow counter and a tamping rod.
FAQs of Aggregate Impact Value Test Apparatus:
Q: What is the purpose of the Aggregate Impact Value Test Apparatus?
A: The Aggregate Impact Value Test Apparatus is used to determine the impact resistance of aggregates in construction material testing.Q: What are the core components of the Aggregate Impact Value Test Apparatus?
A: The core components of the apparatus include Base, Hammer, and Cylindrical Cup.Q: What is the warranty period for the Aggregate Impact Value Test Apparatus?
A: The apparatus comes with a 1-year warranty.Q: What is the weight of the Aggregate Impact Value Test Apparatus?
A: The approximate weight of the apparatus is 12 kg.Q: Is the Aggregate Impact Value Test Apparatus automated?
A: No, the apparatus operates in a manual mode.Q: Can the Aggregate Impact Value Test Apparatus measure impact resistance accurately?
A: Yes, the apparatus offers high accuracy in determining the impact resistance of aggregates.Q: What materials are used in the construction of the Aggregate Impact Value Test Apparatus?
A: The apparatus is made of Cast Iron and Steel materials.
