Send InquiryAggregate Impact Tester with Blow Counter
Price 1000.0 INR/ Unit
MOQ : 1 Unit
Aggregate Impact Tester with Blow Counter Specification
- Material
- Steel, Brass, Cast Iron
- Product Type
- Aggregate Impact Tester / Toughness Tester
- Warranty
- 1 year
- Accuracy
- High precision impact measurement %
- Capacity
- Standard capacity for aggregate impact testing Pcs/hr
- Core Components
- Hammer Counter mechanism Base plate
- Power Source
- Manual operation
- Temperature Range
- Ambient conditions Celsius (oC)
- Automation Grade
- Manual
- Operate Method
- Manual: Hammer is manually lifted and dropped $15$ times onto the sample via a quick-release mechanism; blows are counted
- Application
- Construction Materials Testing, Pavement Engineering
- Measurement Range
- Testing aggregate impact values
- Classification
- Civil Engineering / Materials Testing Equipment
- Dimension (L*W*H)
- 30x15x50 Centimeter (cm)
- Usage
- Quality control of aggregates for road and concrete construction
- Color
- Select (Typically Brass, Gold, or Painted Blue)
- Model No
- Feature
- Blow counter mechanism for precise testing
- Equipment Materials
- Stainless steel Brass components
- Type
- Aggregate Impact Tester (AIT)
- Display Type
- Manual/Digital Blow Counter
- Weight
- Approx. 15 kg Kilograms (kg)
About Aggregate Impact Tester with Blow Counter
Aggregate Impact Tester with Blow Counter
For Determining The aggregate Impact Value.
Specification :

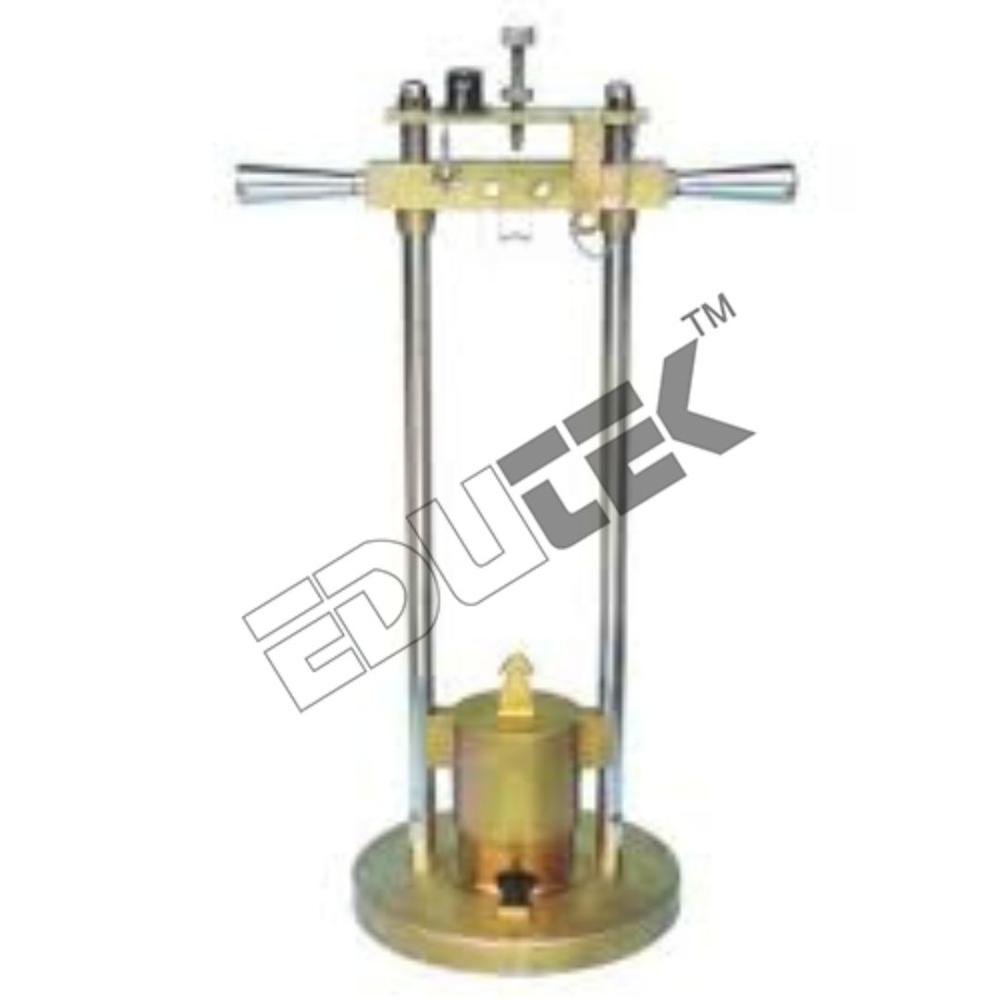

The instrument consists of a circular base with Two vertical guides. The Hammer of weight 13.75 +/-0.25 kg can be raised to fall freely down the vertical guides. The Height of fall can be adjusted through 380 +/- 5 mm. The Hammer is provided with a locking arrangement. The hammer falls freely to the base and is removable for employing. Supplied complete with metal measure 75 mm diameter x 50 mm high (For specimen preparation) and Tamping Rod 230 mm long x 10 mm diameter. A Blow Counter to count the number of strokes is fitted on top of the equipment.
FAQs of Aggregate Impact Tester with Blow Counter:
Q: What is the warranty period for the Aggregate Impact Tester with Blow Counter?
A: The Aggregate Impact Tester with Blow Counter comes with a 1-year warranty.Q: What is the capacity of the Aggregate Impact Tester for testing aggregate impact values?
A: The Aggregate Impact Tester has a standard capacity suitable for aggregate impact testing.Q: What are the core components included in the Aggregate Impact Tester with Blow Counter?
A: The core components of the tester include Hammer, Counter mechanism, and Base plate.Q: Is the Aggregate Impact Tester automated or manual in operation?
A: The Aggregate Impact Tester operates manually with high precision impact measurement.Q: What is the material used for the equipment construction of the Aggregate Impact Tester?
A: The equipment materials consist of stainless steel and brass components for durability and accuracy.
