AC-DC Power Supplies

Get a Price/Quote

AC-DC Power Supplies Specification

Voltage
AC 100-240V input, DC 12V output

Operate Method
Continuous

Classification
Electrical/Power Supply

Power
100W

Capacity
8.3A output

Application
Industrial equipment, LED lighting, instrumentation, automation systems

Usage
Provides regulated DC power from AC mains

Weight
240 g

Color
Silver/Black

Product Type
AC-DC Power Supplies

Material
Metal housing with PCB

Dimension (L*W*H)
110mm x 78mm x 36mm

AC-DC Power Supplies Trade Information

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About AC-DC Power Supplies

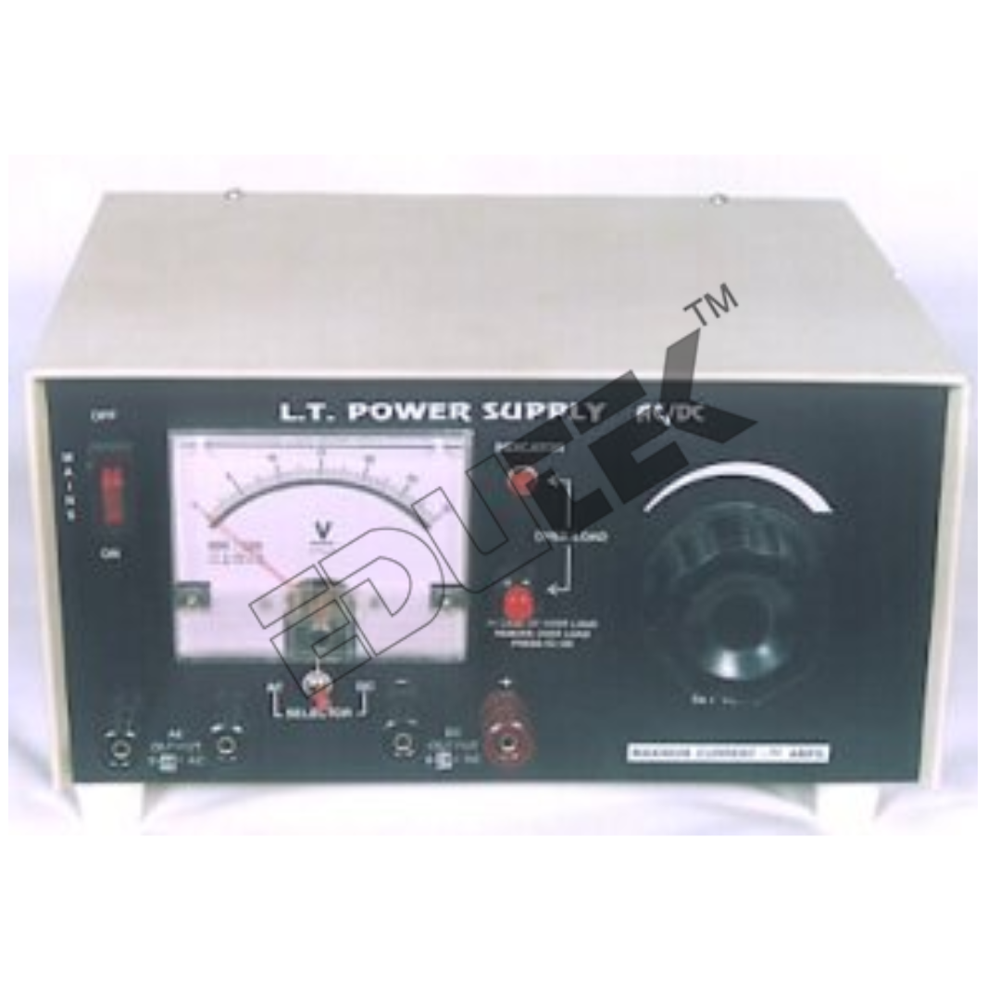

AC-DC Power Supplies

Gives continuously variable A.C. and D.C. outputs up to 10 A for a.c. and 8 A for d.c. A meter is provided to indicate both a.c. and d.c. voltages. An internal fuse is provided for input and a resettable cut-out for output. With detachable 1.5 metre mains lead.

Specification

Mains Input :	220-240 V a.c. 50/60 Hz
Output Voltages :	0 to 25 V a.c. and unsmoothened full wave rectified d.c.
Output current :	10 A maximum a.c.: 8 A maximum d.c.
Voltage Selection :	Rotary continuously variable transformer operated by a large knob on front panel.
Metering :	A.c. and d.c. output voltages by a moving coil meter with selector switch to select a.c. or d.c.
Circuit protection :	Mains input 3 A internal glass fuselink. Output is protected by a resettable cut-out.
Output terminals :	Colour coded 4 mm sockets.

Reliable Power Conversion

Designed to convert AC mains power to regulated 12V DC output, this power supply is suitable for a variety of industrial devices and automation systems. With high efficiency and protection features, it ensures stable operation even in demanding environments. Its panel-mount structure and convection cooling simplify integration and long-term use.

Built for Industrial Applications

This power supply is specifically crafted for industrial equipment, LED lighting, instrumentation, and automation systems. Its rugged metal enclosure and internal PCB layout provide excellent durability while safeguarding internal components against short circuits and overloads.

FAQs of AC-DC Power Supplies:

Q: How do I install this AC-DC power supply for optimal performance?

A: Installation is straightforward: mount the power supply to a panel using the provided slots and connect the AC input wiring (100240V) and DC output terminals (12V, up to 8.3A) according to standard electrical practices. Ensure adequate airflow for convection cooling and follow all relevant safety regulations.

Q: What protection features does this power supply include?

A: This device integrates both short circuit protection and overload protection mechanisms. These features help prevent damage caused by excessive current draw or output faults, enhancing the overall safety and lifespan of the unit.

Q: When is this power supply most beneficial to use?

A: It is particularly advantageous for continuous operation in industrial environments, such as automation, LED lighting, and instrumentation, where stable, regulated DC power is crucial for reliable equipment performance.

Q: Where can this power supply be used?

A: Ideal for panel-mounted configurations, this power supply is suited for industrial control cabinets, LED lighting enclosures, and various automation equipment installations within factories or commercial facilities.

Q: What is the advantage of convection cooling in this product?

A: Convection cooling eliminates the need for mechanical fans, reducing maintenance requirements and operational noise. This passive method ensures reliable heat dissipation in most standard usage scenarios.

Q: How does this power supply ensure continuous operation?

A: With a robust design, efficient power conversion (up to 85%), effective protection circuits, and the ability to operate within -10C to +60C, this unit supports continuous, long-term usage without compromising safety or efficiency.
