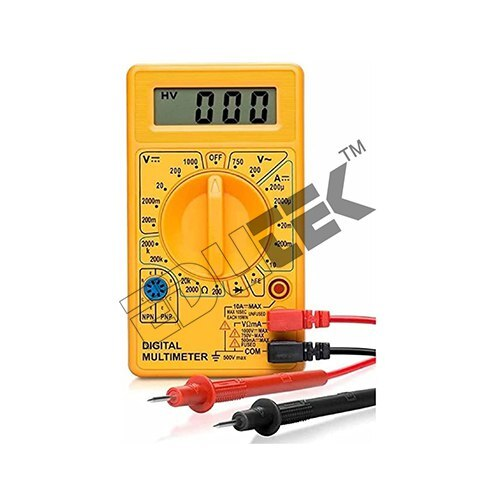

3 1/2DIGIT DIGITAL MULTIMETER (MANUAL RANGE)

Send Inquiry

Request To Call Back

3 1/2DIGIT DIGITAL MULTIMETER (MANUAL RANGE)

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

3 1/2DIGIT DIGITAL MULTIMETER (MANUAL RANGE) Specification

Output
Digital LCD Display

Resolution
1999 Counts

Features
Manual Range Selection, Overload Protection, Portable

Input
Standard Test Leads

Power Supply
9V Battery (6F22)

Power Source
9V Battery

Usage
ENGINEERING ELECTRONICS EQUIPMENTS

Operating Temperature
0C to 40C

Display Type
3 1/2 Digit LCD Display

Components
Display, Rotary Switch, Input Jacks, Test Leads

Product Type
3 1/2DIGIT DIGITAL MULTIMETER (MANUAL RANGE)

Application
ENGINEERING ELECTRONICS EQUIPMENTS

Rated Voltage
600 V Max

Supply Voltage
9V

Size
Standard Handheld

Dimension (L*W*H)
138 x 69 x 30 mm

Function
Measurement of AC/DC Voltage, AC/DC Current, Resistance, Diode, Continuity

Color
Yellow/Black

Weight
Approx. 200g

Capacity
Varies as per function

Current Rating
Up to 10A DC

Thickness
Approx. 30 mm

Frequency
50/60 Hz (for relevant measurements)

Data Hold
No

Fuse Protection
Yes (for current ranges)

Battery Test Function
Yes

Model Number
DT-830 Series or Equivalent

DC Voltage Range
200mV/2V/20V/200V/600V

Continuity Buzzer
Yes

AC Voltage Range
200V/600V

Sample Rate
Approx. 2-3 times/sec

Resistance Range
200/2k/20k/200k/2M

Diode Test
Yes

Auto Power Off
No

Safety Rating
CAT II 600V

DC Current Range
200uA/2mA/20mA/200mA/10A

Input Impedance
>10M (for DCV)

Backlight Display
No

3 1/2DIGIT DIGITAL MULTIMETER (MANUAL RANGE) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About 3 1/2DIGIT DIGITAL MULTIMETER (MANUAL RANGE)

Specification:

3 1/2DIGITDIGITAL MULTIMETER (MANUAL RANGE)

DCVoltage:200mV-1000Vtd>

ACVoltage:200V-750V

Current:2000uA-10A

Frequency: SquareWave-50kHz

Resistance:0 Ohms to 2000K

Weight: 300 grams

Precision Measurement for Electronics Engineers

Engineered for precision, the Series multimeter ensures accurate readings across multiple ranges for AC/DC voltage, current, and resistance. Manual range selection provides control and flexibility, supporting various diagnostic tasks in electrical circuits and equipment. Whether used in laboratories or fieldwork, its optimized for a wide spectrum of engineering needs.

Comprehensive Safety and Ease of Use

Equipped with fuse protection for current ranges, CAT II 600V safety rating, and overload protection, the multimeter is built for secure operation. Its ergonomic design and clear digital display facilitate confident testing and troubleshooting, while its lightweight build enables easy transport between workstations.

Advanced Features for Diverse Applications

Beyond standard measurements, the Series offers diode testing, continuity buzzer, and a battery test function to extend its utility. Standard input jacks and test leads make connections quick and reliable. As an indispensable tool for students and professionals, its robust feature set supports applications in engineering, maintenance, and education.

FAQs of 3 1/2DIGIT DIGITAL MULTIMETER (MANUAL RANGE):

Q: How do I operate the manual range selection on the digital multimeter?

A: To use manual range selection, turn the rotary switch to the desired measurement function and range. This allows you to select appropriate scales for voltage, current, or resistance, ensuring accurate readings without the risk of overload.

Q: What types of measurements can I perform with this multimeter?

A: The enables measurements of AC/DC voltage (200mV to 600V), DC current (200A to 10A), resistance (200 to 2M), diode tests, continuity checks with a buzzer, and battery testing, covering most electronics troubleshooting scenarios.

Q: When should I replace the battery in the multimeter?

A: Replace the 9V battery whenever the LCD display dims or the multimeter fails to power on. Regular battery checks help maintain accuracy and prevent measurement interruptions during use.

Q: Where can I use the Series digital multimeter safely?

A: This multimeter is suitable for use in laboratories, workshops, field settings, and educational environments. With a CAT II 600V safety rating and overload protection, its designed for standard engineering electronics equipment up to 600V.

Q: What is the process for testing continuity and diodes with this multimeter?

A: Set the rotary switch to the continuity or diode test mode, connect the test leads to the circuit or component being tested, and observe the LCD reading. For continuity, the buzzer sounds if the circuit is complete; for diodes, the display shows forward voltage drop.

Q: What benefits does fuse protection provide on current ranges?

A: Fuse protection safeguards the multimeter and the operator against accidental overload or overcurrent during DC current measurements, enhancing device longevity and user safety.

Q: Can I use this multimeter for educational purposes in electronics engineering?

A: Yes, the Series is ideal for education, offering reliable measurements and sturdy construction. Its portable design and comprehensive features make it well-suited for student laboratories and electronics practice sessions.
