VARIABLE SPEED CENTRIFUGAL PUMP TEST

About VARIABLE SPEED CENTRIFUGAL PUMP TEST

Specification:

VARIABLESPEED CENTRIFUGAL PUMP TEST

Description:

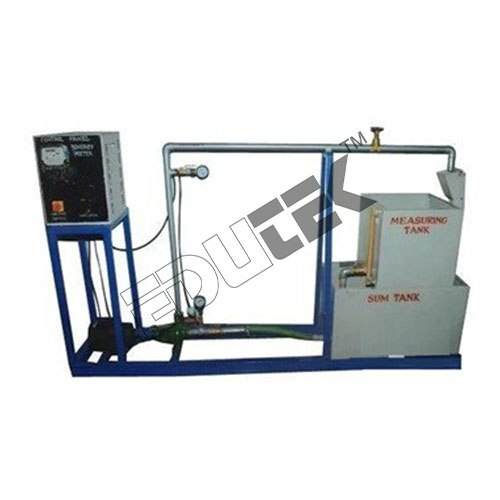

The present Centrifugal Pump Test Rigis a self-contained unit operated on closed circuit basis containing a sumptank. The set-up consists of a Centrifugal pump coupled with a DC Motor.

Power input to the DC Motor is variedby means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPMIndicator with Proximity sensor indicates the RPM of Pump.

Flow of water is measured by usingmeasuring tank and stopwatch.

Vacuum gauge is fitted on suctionline and Pressure gauge is fitted on delivery line to measure the pressure.

Experimentation:

To determine total head, Pump Output,overall efficiency and pump efficiency of the centrifugal pump.

To plot Head vs Discharge, Pumpefficiency vs Discharge, Pump Output vs Discharge.

Utilities Required:

Water Supply.

Drain.

Electricity 1 kW, 220V AC, SinglePhase.

Floor Area 2 x 1 m.

Technical Details:

Pump: Kirloskar Make, Capacity 1 HP

Speed 2800 RPM (max.), Head 12 m(max.)

Medium Flow: Clear Water

Drive: 1 HP DC Motor with Thyristor controlled DC drive forvariable speed.

Sump Tank: Capacity 110 Ltrs.

Flow Measurement: Using Measuring Tank withPiezometer, Capacity 70 Ltrs.

Stop watch: Electronic.

Pressure Gauge: Bourdon type

Control Panel Comprises of:

RPM measurement: Digital RPM Indicator with Proximity sensor.

Energy measurement: L&T make, Electronic Energymeter.

Standard make On/Off Switch, MainsIndicator, etc.
