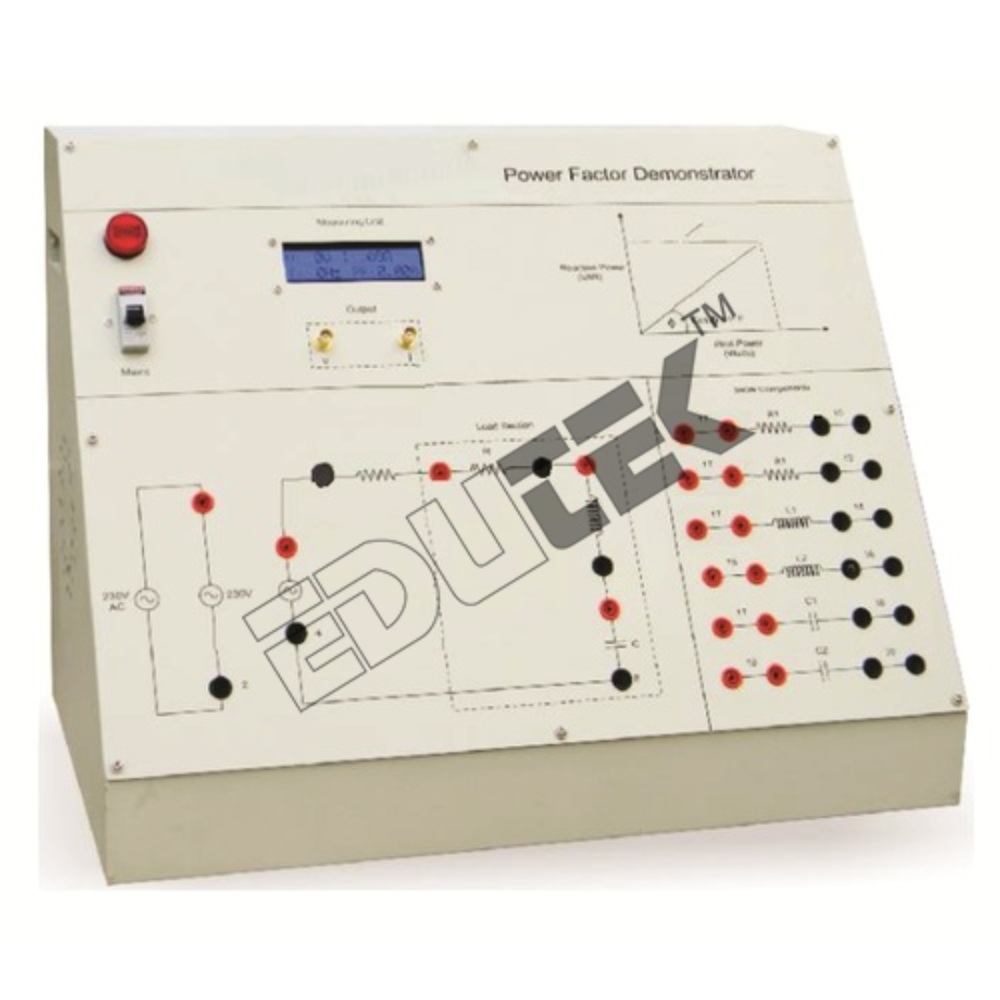

Training Model Power Factor Demonstrator Trainer

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Training Model Power Factor Demonstrator Trainer Specification

Output
Measurement Parameters (Power, Voltage, Current, Power Factor)

IP Rating
IP20

Interface
Panel-mounted controls, digital readout

Response Time
Instantaneous measurement

Input
AC Mains Supply

Resolution
Voltage and Current Accuracy: 1%

Display Type
Digital (LED/LCD) meters for voltage, current, power, and power factor

Sensors Specification
Integrated voltage and current sensors

Components
Inductive load, resistive load, capacitor bank, digital meters, switchgear, wiring accessories

Power Supply
230 V, 50 Hz AC

Operating Temperature
0C to 50C

Power Source
AC Mains Powered

Usage
Laboratory educational equipment for training and demonstration purposes

Features
Demonstrates lagging, leading, and unity power factor; safe operation; modular construction; fuse protection; easy-to-use terminals and switches.

Product Type
Power Factor Demonstrator Trainer

Application
Electrical laboratory, engineering colleges, technical schools

Rated Voltage
230 V AC

Supply Voltage
230 V AC

Size
Standard Table Top

Dimension (L*W*H)
600 mm x 400 mm x 200 mm

Function
To demonstrate the effect of different power factor values on electrical circuit performance and teach the principles of power factor correction.

Color
Black and Grey

Weight
Approx. 10 kg

Capacity
Single-phase up to 1 kVA

Thickness
Panel thickness approx. 3 mm

Current Rating
Up to 5 Amps

Frequency
50 Hz

Mounting Type
Table top with rubber feet for vibration isolation.

Fuse Protection
Inbuilt fuse for circuit protection.

Load Selection Switches
Provided for easy load switching between resistive, inductive, and capacitive modes.

Adjustability
Adjustable capacitor bank for varying power factor values.

Build Material
High quality MS powder coated enclosure and PVC front panel.

Safety Standard
Meets international safety and electrical standards.

Learning Material
Supplied with user manual, circuit diagrams, and experiment sheets.

Test Points
Multiple test points provided for measurement and observation.

Cooling
Natural air cooling.

Training Model Power Factor Demonstrator Trainer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Training Model Power Factor Demonstrator Trainer

TRAINING MODEL-POWER FACTOR DEMONSTRATOR

Measurement of power factor at resistive (R) Load
Measurement of resistive and inductive (R-L)
Measurement of resistive and capacitive (R-C)
Inductive and capacitive (R-L-C)
Analysis and Power improvement of power factor of RL network through capacitor
Analysis and improvement of power factor of RC network through inductor
Analysis and improvement of power factor of RCL network through inductor
Big Font LCD for better visibility
Inbuilt isolated BNC terminals to observe V and I simultaneously
Equipped with inbuilt R, L and C load required for experiment

Versatile Power Factor Demonstration

This trainer enables users to explore power factor effects in single-phase circuits by easily switching between resistive, inductive, and capacitive loading modes. With its adjustable capacitor bank and clear digital displays, students and instructors can visually assess and measure changes in circuit parameters and power factor correction, enhancing laboratory learning experiences.

Safety and Easy Operation

Safety is a priority, featuring inbuilt fuse protection and an IP20-rated enclosure. Natural air cooling and vibration-isolating rubber feet ensure reliable operation. Front panel controls and labelled test points provide easy access to all functions, allowing users to safely perform a range of experiments without specialized knowledge.

Comprehensive Educational Support

Supplied with a user manual, detailed circuit diagrams, and experiment sheets, the trainer is ideal for curriculum integration. This complete package guides users through experiments, helping them understand theoretical principles and practical applications of power factor correction and efficient power usage in AC circuits.

FAQs of Training Model Power Factor Demonstrator Trainer:

Q: How does the Model Power Factor Demonstrator Trainer help in understanding power factor correction?

A: The trainer allows users to simulate and observe the impact of different load typesresistive, inductive, and capacitiveon circuit performance. With an adjustable capacitor bank and digital measurement indicators, students can see how power factor changes and learn correction techniques in a hands-on manner.

Q: What is the process for switching between different load modes on this trainer?

A: The device features dedicated load selection switches for resistive, inductive, and capacitive modes. Users can easily alternate between these loads during experiments, making it simple to demonstrate and compare the effects of each on power factor and other electrical parameters.

Q: Where is this demonstrator best utilized?

A: This power factor trainer is ideal for use in electrical laboratories of engineering colleges, technical schools, and vocational training centers, providing practical experience for students studying electrical circuits and power management.

Q: What safety features are incorporated in this trainer?

A: The unit has an integrated fuse for protection from overloads or short circuits, a robust powder-coated enclosure, and complies with international electrical and safety standards. The table-top design with rubber feet also minimizes operational risks and vibration during use.

Q: How accurate are the measurements provided by this trainers digital meters?

A: The digital LED/LCD meters for voltage and current are highly precise, offering an accuracy of 1%. Integrated voltage and current sensors ensure reliable, instantaneous readings for all measured parameters.

Q: What are the main educational benefits of using this power factor demonstrator?

A: Students gain practical insights into the principles of power factor, its correction, and its importance in electrical systems. Experimenting with real loads and adjustable parameters enhances theoretical understanding, preparing learners for real-world engineering challenges.
