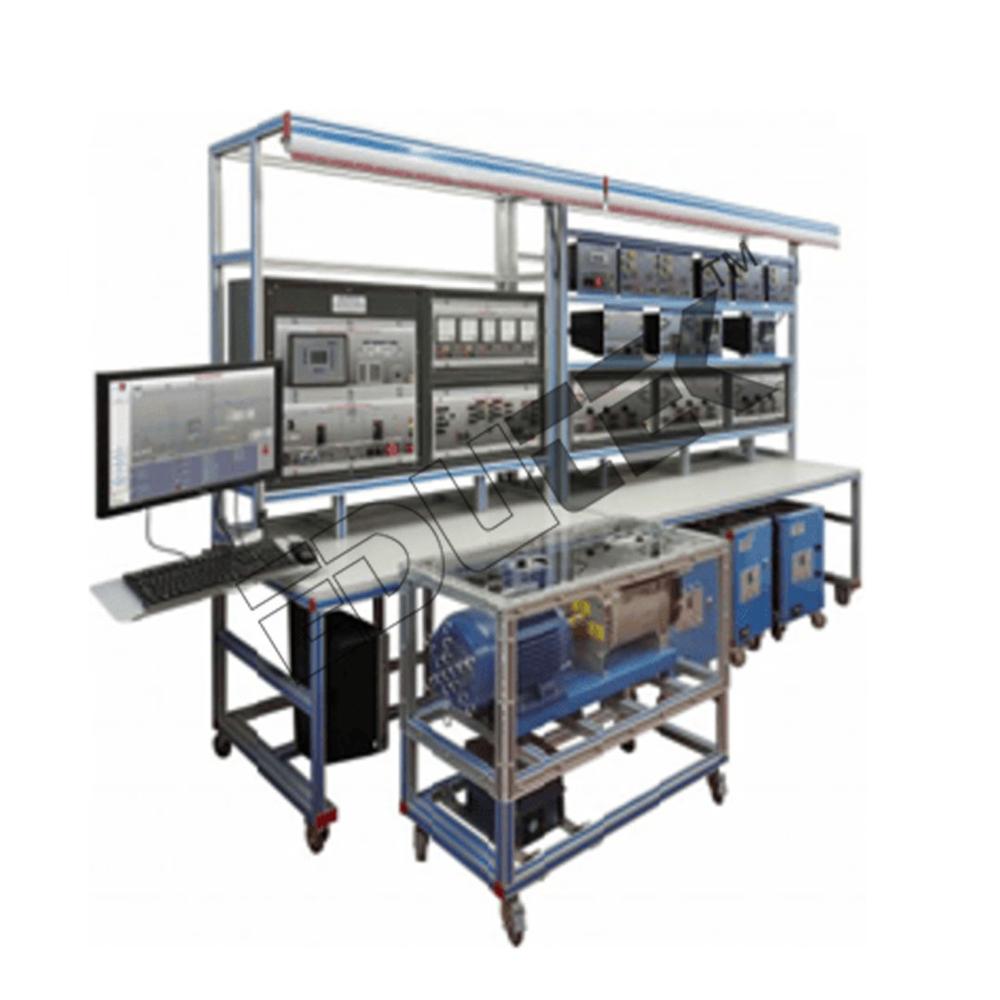

Send InquirySmart Grid And Power System Trainer
Price 1000.0 INR/ Unit
MOQ : 1 Unit
Smart Grid And Power System Trainer Specification
- Interface
- Panel interface with test sockets
- Operating Temperature
- 0C to 50C
- Power Supply
- 230V AC, 50Hz
- IP Rating
- IP20
- Input
- Single phase and three phase supply
- Features
- Smart grid simulation, real-time monitoring, protection and fault analysis
- Output
- Multiple power output terminals
- Usage
- Educational and laboratory training
- Power Source
- Mains supply
- Response Time
- Instantaneous (for fault simulation)
- Sensors Specification
- Current and Voltage sensors built-in
- Components
- Transmission line model, circuit breakers, transformers, load, meters
- Display Type
- Analog and Digital Meters
- Product Type
- Power System and Smart Grid Trainer
- Application
- Engineering institutes, polytechnics, training centers
- Rated Voltage
- 230V AC
- Supply Voltage
- 230V AC
- Size
- Standard Trainer Size
- Dimension (L*W*H)
- 900mm x 600mm x 450mm
- Function
- Smart grid demonstration and power system analysis
- Color
- Blue and grey
- Weight
- 33 kg
- Current Rating
- Up to 5A
- Capacity
- Multiple trainees
- Thickness
- Panel thickness 2 mm approx.
- Frequency
- 50 Hz
- Control
- Manual rotary and push-button switches for operation
- Insulation Resistance
- >10 M
- Test Points
- Banana plug sockets
- Accessories
- Set of connecting leads and experiment charts included
- Manual Included
- Detailed experiment manual supplied
- Connectivity
- Test points and terminals for experiment connections
- Construction
- Powder coated MS body
- Simulation Capability
- Smart grid, grid faults, islanding, distributed generation simulation
- Mounting
- Table top
- Experiment Types
- Transmission line, distribution, grid fault, load management experiments
- Safety Protection
- Integrated fuses and overload protection
- Voltage Regulation
- Automatic/Manual
- Transformer Type
- Single & three phase experimental transformers provided
- Display Indicators
- LED indicators for operational status
- Power Consumption
- Approx. 150W
- Standards Compliance
- Conforms to IS/IEC safety standards
- Learning Module
- Supports integration with e-learning modules
Smart Grid And Power System Trainer Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C), Cheque
- Sample Available
- Yes
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Packaging Details
- carton box, export quality also available
- Main Export Market(s)
- Middle East, Western Europe, Asia, Eastern Europe, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001 ,CE
About Smart Grid And Power System Trainer
Smart Grid And Power System Trainer
- The unit serves to familiarize students with the components and principle of operation of the generation, transmission, distribution, protection and management of electrical energy
- Energy management, smart grid training system
- Energy generation include solar and wind , regenerative energy generation
- High-voltage transmission lines, protective systems
The unit consists of:
- Smart Grid Trainer
- Electric power distribution
- Transmission lines
- line protection
- Investigating complex loads
- Three-phase double busbar system
- Investigations on Three-phase Transmission Lines
- Over current time protection for lines Complex loads, power consumption measurement and peak load monitoring
Equipment set comprising the following:
- Double busbar unit, three-phase, incoming / outgoing feeder
- Double busbar unit, three-phase, coupler panel
- Transmission line Model 150km/300km
- Time Over current Relay
- Ohmic load 3x 560 Ohm
Power supply:
- Adjustable 3-phase power supply, 0-450V/2A
- Power switch module
- Multiple socket outlet, 6 fold, with illuminated switch
Measuring instruments:
Three-phase power quality meter, display and long-term memory
Dynamic loads Training contents:
- Dynamic, three-phase load (asynchronous motor)
- Power measurement in the case of energy-flow reversal
- Manual and automatic compensation of reactive power
- Wind power plant with DFIG
- Professional Photovoltaics with Battery storage system
- For the tinning unit all basic equipment and Supplementary material included for operation and make the unit work properly and be able to make tests and troubleshooting on the system.
- Pc and Software and license for operation included All required tools for operation included Unit complete with all required accessories
- Installation and Commissioning and training included
Comprehensive Smart Grid Simulation
This trainer enables simulation of smart grid operations, grid faults, islanding, and distributed generation. Users can model transmission and distribution networks, analyze faults instantly, and understand real-time protection mechanisms. Such hands-on learning fosters practical understanding and prepares students for real-world applications in modern power systems.
User-Friendly Design and Safety Features
The table-top unit features intuitive control via rotary and push-button switches, clear analog/digital meters, and LED indicators for status monitoring. Integrated fuses and overload protection ensure safe experimentation. Its robust construction and insulation resistance above 10 M provide reliable usage in educational laboratories and training centers.
Versatile Experimentation and Learning Modules
Supporting multiple trainees, the trainer includes a set of transmission line models, transformers, circuit breakers, loads, and meters. Extensive experimentsfrom transmission line analysis to grid fault simulationare made accessible with test points and terminals. Connection with e-learning modules deepens engagement and enhances knowledge retention.
FAQs of Smart Grid And Power System Trainer:
Q: How do users connect experiments to the Smart Grid and Power System Trainer?
A: Experiments are connected using banana plug sockets and test points located on the trainer panel. Users employ the provided set of connecting leads to establish safe and secure connections for various circuit configurations.Q: What types of experiments can be performed with this trainer?
A: The trainer supports a broad range of experiments, including transmission line modeling, distribution system analysis, grid fault simulation, load management, and transformer testing (single/three phase). Smart grid and distributed generation scenarios can also be simulated.Q: When should the integrated safety protection features be used?
A: Integrated fuses and overload protection automatically activate to safeguard users and components during abnormal conditions or excessive current draw. Regular use during any experiment ensures personal and equipment safety.Q: Where is the Smart Grid and Power System Trainer best utilized?
A: This trainer is routinely employed in engineering institutes, polytechnics, and laboratory training centers. Its compact, table-top design and robust construction make it suitable for classroom, lab, or demonstration environments.Q: What is the process for simulating grid faults and load management?
A: Users initiate fault simulations or load management experiments by configuring the respective switches and settings on the trainer. Real-time monitoring via analog/digital meters and LED indicators provides instantaneous feedback on system response and protection actions.Q: How does the integration with e-learning modules benefit trainees?
A: Integration with e-learning modules enhances theoretical understanding by linking hands-on experiments with digital coursework, fostering a holistic learning environment. This approach improves retention and bridges the gap between practical and academic knowledge.Q: What operational controls are available on the trainer?
A: Manual rotary and push-button switches allow users to operate the trainer, select experimental modes, and manage system parameters such as voltage regulation and fault simulation, providing intuitive and flexible control for various training scenarios.
