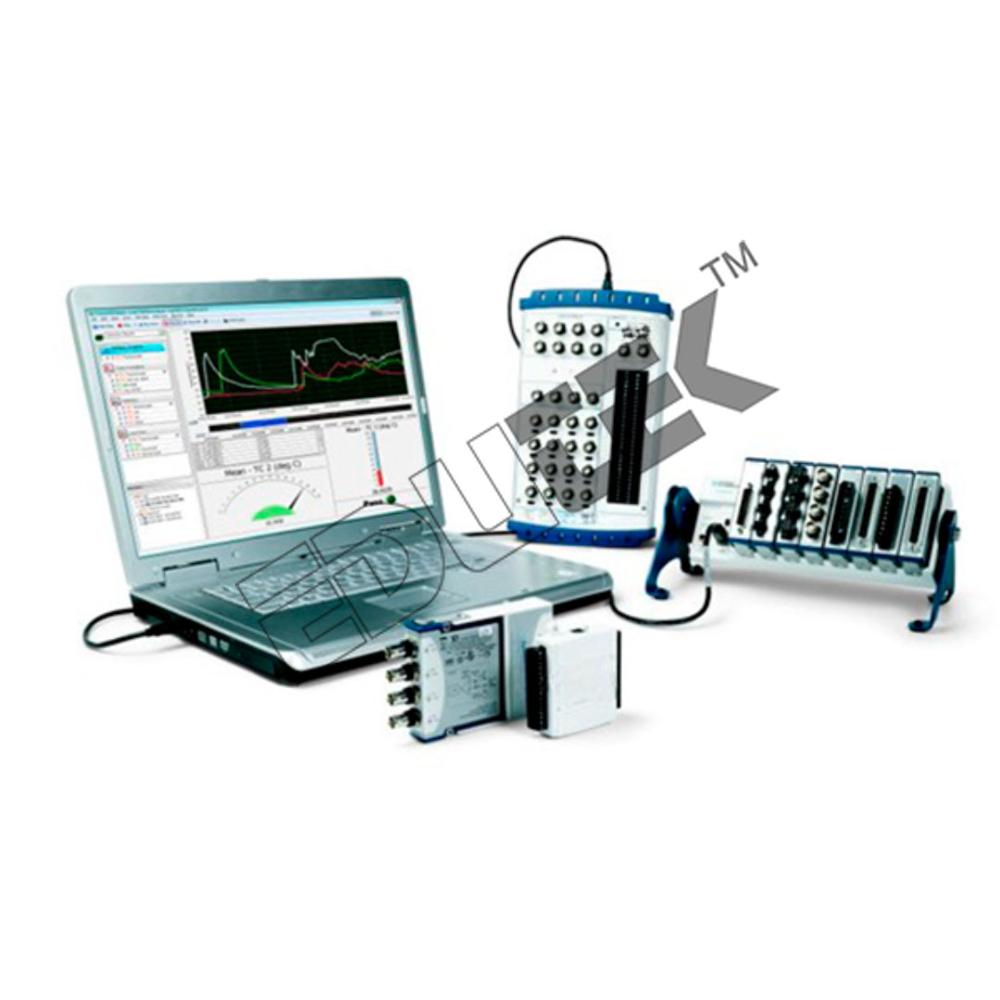

Portable Data Acquisition (DAQ) Device

Price 100.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Portable Data Acquisition (DAQ) Device Specification

Components
DAQ unit, USB cable, connectors, software CD

Power Supply
Rechargeable battery / USB powered

Interface
USB 2.0, SD card slot, digital/analog screw terminals

Output
USB interface to PC, data export via SD card

Sensors Specification
Compatible with a variety of sensors (thermocouple, RTD, voltage, current)

Power Source
Rechargeable internal battery / USB

Response Time
<1 ms

Input
Multiple analog and digital channels

Operating Temperature
0C to 50C

Usage
Portable field data logging, laboratory data acquisition, industrial process monitoring

Resolution
16-bit analog-to-digital resolution

Charging Voltage
5V DC via USB

IP Rating
IP20

Processor Speed
32-bit microcontroller, 72 MHz

Features
Portable, lightweight, PC connectivity, plug-and-play, expandable memory

Display Type
LED indicators for channel status

Product Type
Portable Data Acquisition (DAQ) Device

Application
Industrial, laboratory, field data collection

Rated Voltage
5V DC

Supply Voltage
5V DC/USB

Size
Compact, pocket-sized

Dimension (L*W*H)
Approx. 180mm x 85mm x 40mm

Function
Multi-channel data acquisition, logging, and real-time monitoring of sensor/data signals

Color
Black with blue front panel

Weight
Approx. 800 grams

Capacity
Supports up to 8 input channels

Current Rating
Max 500 mA

Thickness
Around 40 mm

Frequency
Sampling frequency up to 20 kHz

Battery Life
Up to 10 hours continuous use

Communication Protocols
Serial over USB

Data Storage
Supports SD card up to 32GB

Software Support
DAQ management Windows software included

Calibration
Factory calibrated, user calibration supported

Data Format
CSV and proprietary DAQ format

Storage Environment
-20°C to 60°C

Mounting Type
Handheld/desktop

Indicator
LED Status Lights for power and channel activity

Safety Certifications
CE Certified

Supported OS
Windows 7/8/10, Linux

Data Transmission
USB 2.0 cable, removable SD card

Firmware Upgrade
Yes, via USB

Humidity Range
Up to 80% RH (non-condensing)

Material Casing
ABS Plastic

Portable Data Acquisition (DAQ) Device Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Letter of Credit (L/C), Cash in Advance (CID), Cash Advance (CA), Telegraphic Transfer (T/T), Cheque

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Western Europe, Middle East, Asia, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Portable Data Acquisition (DAQ) Device

PORTABLE DATA ACQUISITION (DAQ) DEVICE AND ACCESSORIES

2 Analog Input Differential channel (4/- 10V, 200 kS/s, 16 bits)
8 Digital I0s
60 V DMM,
1 scope channel and Audio Jacks
+5 , +15, and -15 Volt Power Supply Outputs
MXP Connector

Accessories include:

Sensors, kits, and small-scale replications of real-world systems
All required tools for operation included
Pc and Software and software update and License for operation included.
Installation and Commissioning and training included

Robust and Portable Design

Featuring a compact, lightweight ABS plastic case, the device is perfectly suited for both handheld and desktop use. Its IP20 rating and robust casing foster durability in a variety of environments, from industrial workplaces to field research sites. The combination of practical design and a rechargeable internal battery ensures dependable, on-the-go operation.

Advanced Data Handling & Connectivity

Data can be stored on SD cards up to 32GB or transferred swiftly through the USB 2.0 interface. Real-time monitoring is made seamless with LED status indicators for power and channel activity. The device supports data exports in both CSV and proprietary formats, enabling straightforward integration into existing workflows for in-depth analysis.

Reliable Performance and Compatibility

With a 16-bit analog-to-digital resolution, a 72 MHz 32-bit microcontroller, and sampling frequency up to 20 kHz, the DAQ device delivers precise, timely data acquisition. Factory calibration ensures initial accuracy, with user calibration available as needed. It operates efficiently on Windows 7/8/10 and Linux, with comprehensive management software included for ease of use.

FAQs of Portable Data Acquisition (DAQ) Device:

Q: How do I transfer data from the Portable DAQ Device to my computer?

A: You can transfer data using the included USB 2.0 cable or by removing the SD card (up to 32GB supported) and connecting it to your PC. The device stores data in CSV and proprietary formats, which can be opened and managed using the supplied DAQ management software on Windows or compatible programs on Linux.

Q: What sensors and inputs does the DAQ device support?

A: This DAQ device is compatible with a wide range of sensors, including thermocouples, RTDs, voltage, and current transducers. It features multiple analog and digital input channels (up to eight), allowing flexible data collection for various industrial, laboratory, or field applications.

Q: How is the Portable DAQ Device powered, and what is its battery life?

A: The device operates on a rechargeable internal battery or through USB power, supporting up to 10 hours of continuous use per charge. Charging is facilitated by the supplied USB cable, using a standard 5V DC supply.

Q: Where can the device be used safely and reliably?

A: The DAQ device is designed for safe operation in environments ranging from -20C to 60C for storage and 0C to 50C when in use. Its ABS casing and IP20 rating provide dependable protection in laboratories, industrial sites, or field locations, with a humidity tolerance up to 80% RH (non-condensing).

Q: What are the steps for performing user calibration?

A: Factory calibration is provided, but users can also recalibrate the device as needed. The process involves using your reference standards and following prompts in the included DAQ management software. Detailed instructions are provided in the user manual for accurate calibration according to your requirements.

Q: What are the main benefits of using this DAQ device?

A: This portable DAQ device offers versatility, portability, and precise multi-channel data capture. Its LED indicators, expandable memory, user-friendly software, long battery life, and broad sensor compatibility make it ideal for rapid deployment in varied professional environments. The inclusion of factory calibration, safety certification, and firmware upgrade support further ensures reliable long-term use.
