PLUG FLOW TUBULAR REACTOR (STRAIGHT TUBE TYPE) APPARATUS

About PLUG FLOW TUBULAR REACTOR (STRAIGHT TUBE TYPE) APPARATUS

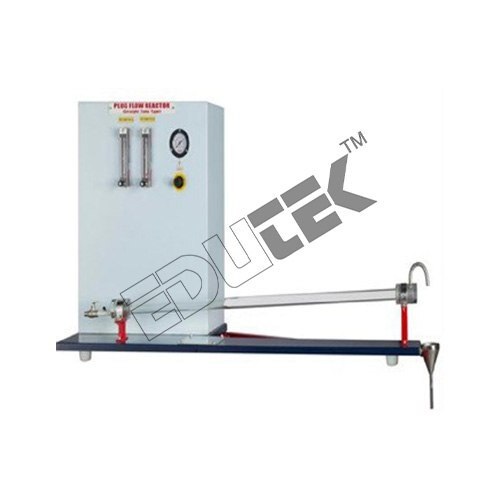

PLUG FLOW TUBULAR REACTOR (STRAIGHT TUBE TYPE) APPARATUS

In an ideal Plug Flow Reactor (PFTR)there is no mixing in the direction of flow and complete mixing perpendicularto direction of flow.

Concentration of reactants variesalong the length of reactor but not in radial direction.

This set-up is used to study anon-catalytic homogeneous reaction under ambient condition.

The set up consists of two feed tanksthrough which two reactants are fed to the reactor.

Rotameters are provided to measurethe individual flow of Chemicals.

The flow rate can be adjusted byoperating the needle valves provided on respective Rotameter.

The compressed air is used forcirculation of feed. Samples are collected for analysis from the outlet ofreactor. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in thecompressed air line.

Experimentation:

Saponification Reaction Study instraight tube Plug Flow Reactor.

To determine Reaction Rate Constant.

Specifications:

Feed Tank (2Nos.): Material Stainless Steel,

Capacity: 20 Ltrs.

Feed Circulation: By compressed air.

Flow Measurement: Rotameter 2 Nos. (One each forReactants).

Piping: Stainless Steel and PVC

Pressure Gauge: Bourdon type 0-2 Kg/cm2.

Stop Watch: Electronic.

The whole unit is assembled rigidlyon a base plate and mounted on a stand.

Most of the parts are powder coatedand rest are painted with auto paints.

Services Required:

Compressed Air Supply at 2 Bar, 0.5CFM.

Water Supply.

Drain.

Instruments, Laboratory Glassware andChemicals required for analysis as per the system adopted.
