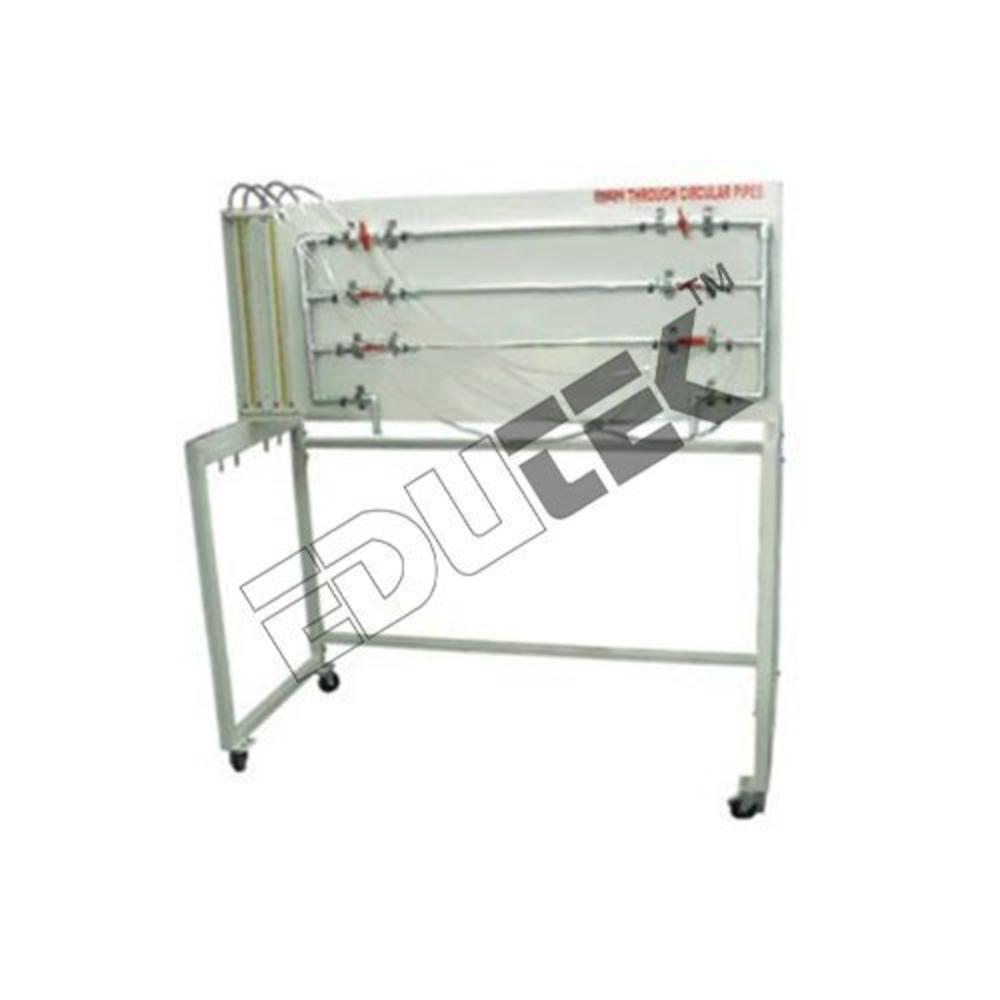

FLUID FRICTION APPARATUS.

Get a Price/Quote

MOQ : 1 Piece

FLUID FRICTION APPARATUS. Specification

Features
Corrosion-resistant components, easy to assemble, comprehensive instruction manual

Test Range
Wide range for laminar and turbulent flow analyses

Product Type
FLUID FRICTION APPARATUS

Resolution
0.01 kg/cm

Number of Specimens
1 at a time

Hardness
Standard laboratory grade materials

Specimen Size
Standard pipe sections supplied, length 1 m

Response Time
Instantaneous (manometer response)

Display Type
Glass tube manometer and flow indicator

Max Height
Apparatus height approx. 1 meter

Frequency
50 Hz

Humidity
Up to 90% RH (non-condensing)

Power Supply
230 V AC, 50 Hz

Mounting Type
Bench-top

Usage
Engineering Testing Equipment

Application
Engineering Testing Equipment

Port Size
12 mm and 25 mm

Temperature
Operating range: 10C to 40C

Operating Voltage
230 V

Automation Grade
Manual

Measuring Range
0-1 kg/cm (manometer range)

Accuracy
0.5% of full scale

Capacity
Tank capacity approx. 40 liters

Machine Weight
Approximately 30 kg

Test Speed
Variable as per flow rate

Control Mode
Manual

Included Accessories
Instruction manual, piping set, measuring cylinder

Equipment Type
FLUID FRICTION APPARATUS

Pipe Section Diameter
12 mm and 25 mm

Material Used
MS powder coated frame, SS pipes and fittings

Sample Types
Straight pipe, smooth and rough sections, bends, elbows, and sudden contraction/expansion

Safety Features
Overload protection for pump

Pump Type
Centrifugal pump, single phase

Pipe Materials Supplied
G.I. and PVC options

Drain Valve
Provided for easy draining

Flow Measurement
Rotameter with calibration

FLUID FRICTION APPARATUS. Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About FLUID FRICTION APPARATUS.

Specification:

FLUIDFRICTION APPARATUS

Fluid Friction Apparatus Shows flowand losses in different pipes, fittings and valves.

Shows popular flow measurementinstruments.

A space-saving vertical panel thatworks with Gravimetric or Volumetric Hydraulic Benches for easy installation

Includes different valves, pipes andfittings to show losses

Includes experiments on roughenedpipes

Shows laminar and turbulent flow

Uses Bernoullis equation

Shows how to use Venturi and orificemeters to measure flow

Includes a traversing Pitot tube tomeasure velocity profile

Fluid Friction Apparatus allowsstudents to study flow, flow measurement techniques and losses in a widevariety of pipes and fittings. The equipment has three water circuits withinstruments, pipes and pipe system components.

These allow students to examine andcompare the different component characteristics.

A hydraulic bench (Gravimetric) orVolumetric, available separately) supplies the circuit with a controlled flowof water. A space-saving vertical panel holds all the parts for easy use.

To measure pressure loss acrosscomponents, students use a piezometer set and differential pressure gauge(included).

To perform experiments studentsrecord the temperature of water in the hydraulic bench and set the hydraulicbench to pump water through a circuit. They measure pressure losses acrossinstruments or components. The hydraulic bench gives an external flow rate forreference and comparison. The flow measurement instruments show students thecommon methods of measuring water flow. They also give applications of thesteady flow energy equation (Bernoullis equation). Students use a Venturimeter and an orifice plate meter and compare the losses of each. They also findthe losses in a rapid enlargement.

The equipment also includes aPitot-static tube. By traversing the Pitot across the pipe diameter, studentscan find the velocity profile and flow coefficients. They also find therelationship between the flow rate and pressure differential. An artificiallyroughened pipe allows students to study friction factor at different Reynoldsnumbers, covering the interesting transitional flow from laminar to turbulent.They can compare results to those predicted by Nickuradses results and a Moodychart.

Standard Features:

Supplied with a comprehensive userguide.

Two-year warranty.

Manufactured in accordance with thelatest Indian Union directives.

Designed for Comprehensive Fluid Flow Analysis

The FLUID FRICTION APPARATUS enables accurate studies of head loss and flow characteristics under different scenarios. With options for smooth, rough, and bent pipe sections, it accommodates a wide variety of experimental setups, making it ideal for both educational instruction and advanced research in fluid mechanics.

Built for Durability and Longevity

Engineered with corrosion-resistant, laboratory-grade materials, including MS powder-coated frames and SS fittings, this apparatus withstands extended use in rigorous academic and industrial environments. Its thoughtful design, with a robust pump and overload protection, ensures reliable and safe testing every time.

User-Friendly Operation and Maintenance

Featuring a manual control system and intuitive glass tube manometer display, the apparatus is simple to assemble and operate. Provided with a comprehensive instruction manual and easy-drain valve, it supports smooth experimental cycles and straightforward maintenance procedures.

FAQs of FLUID FRICTION APPARATUS.:

Q: How do I measure fluid flow in the FLUID FRICTION APPARATUS?

A: The apparatus measures fluid flow using a rotameter calibrated for precise readings. You can adjust the control valves manually to set the desired flow rate, which is then instantly displayed by the glass tube manometer and flow indicator.

Q: What types of experiments can be conducted with this apparatus?

A: You can perform a wide range of laminar and turbulent flow analyses using straight, smooth, rough pipe sections, as well as experiments involving bends, elbows, and sudden contraction or expansion. This versatility is suitable for comprehensive fluid mechanics studies.

Q: When should I use the GI and PVC pipe options provided?

A: GI and PVC pipes are included to simulate different material properties and friction coefficients. Use GI pipes for experiments requiring metal conductivity and PVC for plastic characteristics, depending on the specific educational or research objectives.

Q: Where is the equipment typically set up for operation?

A: The apparatus is designed as a bench-top unit, making it ideal for laboratories, engineering classrooms, and research facilities where reliable, safe, and efficient operation is required.

Q: What safety measures are integrated into the equipment?

A: The FLUID FRICTION APPARATUS includes overload protection for the centrifugal pump, corrosion-resistant materials, and straightforward draining with a dedicated valve to ensure user and equipment safety during operation and maintenance.

Q: How do I maintain and clean the apparatus after use?

A: After each use, simply open the drain valve to empty residual fluid. Rinse the tank and pipes with clean water and follow the maintenance guidelines detailed in the included instruction manual for proper care and prolonged equipment life.

Q: What advantages does this apparatus offer for engineering testing?

A: This apparatus provides precise measurement (accuracy 0.5%), rapid response time, wide test range, and easy assembly. Its durable construction and detailed manual make it highly suitable for teaching, research, and industrial laboratory environments.
