ENERGY EFFICIENCY IN REFRIGERATION SYSTEMS
The efficient use of energy in refrigeration is an important topic. A higher capacity requirement is implemented in industry by connecting several small compressors in parallel. This permits the optimum adaptation to the capacity requirement by adding and removing compressors. includes three compressors connected in parallel for this purpose which can be switched on or off via a controller.

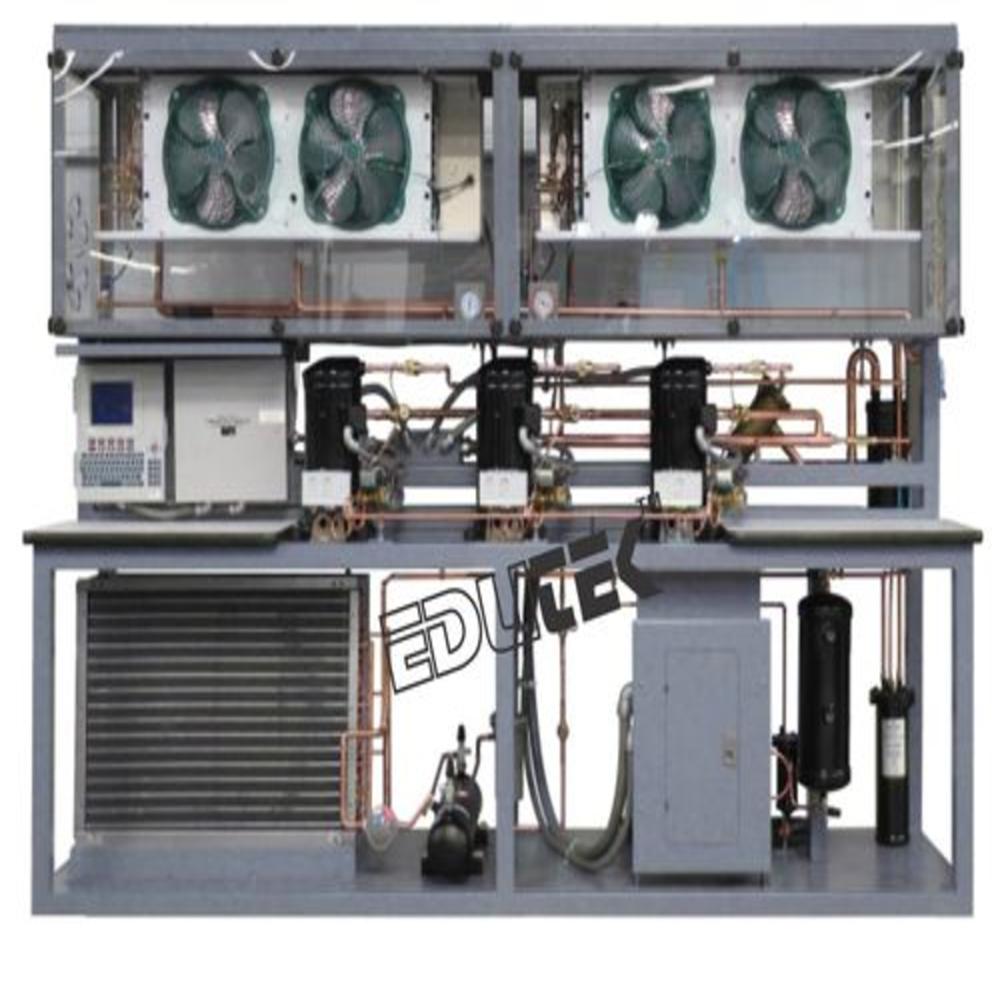

The components of a refrigeration circuit with three compressors are arranged clearly in the trainer. A glycol-water circuit with pump and tank with heater serves as cooling load at the evaporator. An internal heat exchanger in the refrigeration circuit allows for the refrigerant supercooling to be examined for process efficiency. The quantitative analysis of the efficiency takes place using an energy balance in the glycol-water circuit and by measuring the electrical power of the compressors.
Relevant measured values are recorded by sensors. The measured values can be read on digital displays. At the same time, the measured values can also be transmitted directly to a PC via USB. The data acquisition software is included.
The well-structured instructional material sets out the fundamentals and provides a step-by-step guide through the experiments.
The unit shall perform the following experiments and investigations:
Learning Objectives / Experiments
- Variables affecting energy efficiency
- Controller parameters
- Refrigerant supercooling
- Interconnected operation of compressors
- Operation of a multicompressor controller
- Methods for returning oil in a multicompressor
- Refrigeration system
- Representation of the thermodynamic cycle in the
- Log p-h diagram
Specification
- Refrigeration system in multicompressor operation to investigate energy efficiency
- Refrigeration circuit with 3 compressors connected in parallel, condenser, thermostatic expansion valve and coaxial coil heat exchanger as evaporator
- Heat exchanger for refrigerant supercooling can be added via valves
- Glycol-water circuit includes pump and tank with heater serving as cooling load at the evaporator
- Multicompressor controller for the parallel operation of the compressors
- Separation of oil from the refrigerant on the delivery side and return to the intake side of the compressors
- Fan at the condenser with adjustable speed
- Software for data acquisition via USB under Windows Vista or Windows 7
- Refrigerant R134a, CFC-free
Technical Data
- 3 compressors
- Refrigeration capacity: each 1584W at -10°C/55°C
- Power consumption: each 1156W at -10°C/55°C
- Condenser with fan
- Capacity: 4100W
- Volumetric air flow rate: 1250m³/h
- Coaxial coil heat exchanger capacity
- 4kW at deltaT=9K; 0,6m³/h glycol-water mixture
- Glycol-water mixture pump
- Max. flow rate: 4,2m³/h
- Max. head: 5,6m
- Heater power: 3kW
- Tank
- Glycol-water mixture: 23L
- Refrigeration circuit receiver: 5,8L
Measuring ranges
- Temperature: 4x 0...100°C, 4x -100°C...100°C
- Pressure: 1x -1...9bar, 1x -1...24bar
- Flow rate: 1x 1...25L/min
- Compressor power: 0...4995W
Dimensions and Weight
- LxWxH: 1810x710x1920mm
- Weight: approx. 265kg
