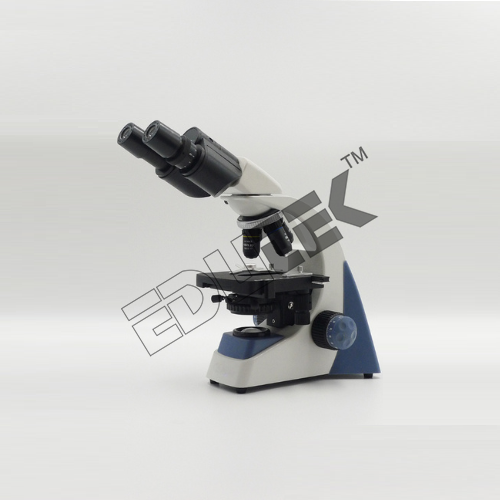

Co-Axial Concept Microscope

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Co-Axial Concept Microscope Specification

Spare Parts
Replacement bulbs, fuses, objectives, eyepieces available

Features
Co-axial coarse & fine focus, mechanical stage, dual illumination, trinocular head for camera attachment

Focus System
Coaxial coarse & fine focusing system with tension adjustment

View Head
Trinocular, 45 inclined, 360 rotatable

Theory
Co-Axial Optical Concept, suitable for biological and laboratory research

Drawtube
Trinocular, 360 rotatable head

Sensor
Not Applicable (for basic model, add-on camera optional)

Resolution
Not Applicable (optical, can support up to 5MP digital camera)

Interface
NA (can support USB interface cameras)

Frame Rate
NA (optional camera dependent)

Focal Distance
Approx. 195mm (to stage)

Magnification
40x to 1600x (using standard optical objectives and eyepieces)

Dimensions
Approx. 380mm (H) x 250mm (W) x 200mm (D)

Focus Range
Coarse and fine adjustment with graduated scale

Eyepieces
10x WF & 16x WF (Wide Field)

Eyepiece Tube
Inclined at 45, interpupillary adjustable

Illumination
Built-in LED and Halogen dual illumination system (6V/20W)

Coarse Adjustment Range
30mm approx.

Fine Adjustment Range
0.002mm precision movement

Working Stage
Mechanical stage size 130 x 130mm, travel range 70 x 30mm

Still Image Capture Resolution
NA (optional camera dependent)

Video Capture Resolution
NA (optional camera dependent)

Image Format
Supports camera add-ons (image format based on connected camera)

Interpupillary Distance
55mm to 75mm adjustable

Objective Achromatic
4x, 10x, 40x (SL), 100x (SL) oil immersion, DIN standard

Condenser
NA 1.25 Abbe condenser, with iris diaphragm and filter holder

Light Source
LED and Halogen dual, adjustable intensity

Weight
Approx. 7.5 kg

Body Material
Sturdy die-cast aluminum frame with anti-rust coating

Dust Cover
Provided for long-term storage

Nosepiece
Revolving quadruple nosepiece with ball bearing

Packaging
Shockproof foam inner with export quality outer carton

Stage Scale Graduation
Vernier readings up to 0.1mm

Power Supply
AC 220V/110V, 50/60 Hz compatible

Color Filter
Blue, Green, Yellow filters included

Co-Axial Concept Microscope Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Co-Axial Concept Microscope

Co-Axial Concept Microscope ETMS-134

Co-Axial Concept Microscope is a quality research microscopy system with ball bearing guideways for highly sensitive focusing system free of even slightest back-lash.

Salient features:-

High transmission Binocular head with multi-layer coated prismatic system
Co-axial focusing system
Co-axial mechanical stage for X & Y movements which provides extra large viewing area
Quadruple nose-piece with Ball Bearing mountings providing accurate alignment
Built-in base light 6V-20W illumination with continuously variable intensity
Abbe condenser N.A. 1.2 moveable on rack-n-pinion with iris diaphragm
Optics specially designed to accommodate Neubauer chamber or Blood Cell counting chamber
Interchangeable to inclined observation tube or Trinocular
All lenses hard anti fungus coated

Durable Construction and Versatility

Built with a sturdy die-cast aluminum frame and anti-rust coating, this microscope is designed for long-term, intensive use. The trinocular head allows for both direct observation and simultaneous camera attachment, making it suitable for teaching, documentation, or detailed research work. The instrument caters to a wide range of applications in biology and laboratory settings.

Precision and Adaptability for Research

The Co-Axial Concept Microscope incorporates a mechanical stage with vernier scale graduation (up to 0.1mm), fine/coarse coaxial focusing, and DIN standard achromatic objectives. With a flexible range of magnification and adaptable illumination (LED and halogen), users can expect precise imaging whether they are examining living specimens or prepared slides.

Comprehensive Accessories and Packaging

Each microscope is supplied with blue, green, and yellow filters, a dust cover for storage, and is packaged with shockproof foam and a high-quality export carton. Spare parts including bulbs, fuses, objectives, and eyepieces are readily available, ensuring both ease of maintenance and longevity.

FAQs of Co-Axial Concept Microscope:

Q: How does the co-axial focusing system enhance microscope operation?

A: The co-axial focusing system integrates both coarse and fine adjustment controls into a single focus block, allowing users to achieve precision focusing without repositioning their hands. This results in smoother transitions and improved stability during observation and imaging.

Q: What types of specimens can I observe with this microscope?

A: This microscope is ideal for viewing a wide array of biological specimens, such as plant and animal cells, tissue sections, microbiological samples, and prepared laboratory slides. Its high magnification range and achromatic objectives make it suitable for diverse applications in research, diagnostics, and education.

Q: When should I use the included color filters?

A: Color filters (blue, green, and yellow) are provided to enhance image contrast and reduce chromatic aberrations under various lighting conditions. Use them according to your specimen type or lighting preference to achieve optimal contrast and detail in your observations.

Q: Where can the optional camera be attached, and what formats are supported?

A: An add-on camera can be mounted on the trinocular port, allowing for still image and video capture depending on the camera used. Supported image and video formats depend on the connected cameras specifications; the microscope is compatible with USB interface cameras up to 5MP resolution.

Q: What is the process for adjusting the interpupillary distance?

A: The interpupillary distance can be easily adjusted between 55mm and 75mm by sliding the eyepiece tubes closer together or further apart. This ensures comfortable viewing for different users and correct binocular alignment for clear, strain-free observation.

Q: How is long-term storage of the microscope ensured?

A: A dust cover is supplied to protect the microscope from environmental contaminants during storage. It is recommended to clean the instrument, cover it, and store it in a dry location after use to maintain optical clarity and mechanical performance.

Q: What benefits does the dual illumination system provide?

A: The built-in LED and halogen illumination offers adjustable light intensity, enabling users to effectively illuminate specimens with either energy-efficient LED or bright halogen based on research needs. This versatility allows for optimal imaging in diverse laboratory environments.
