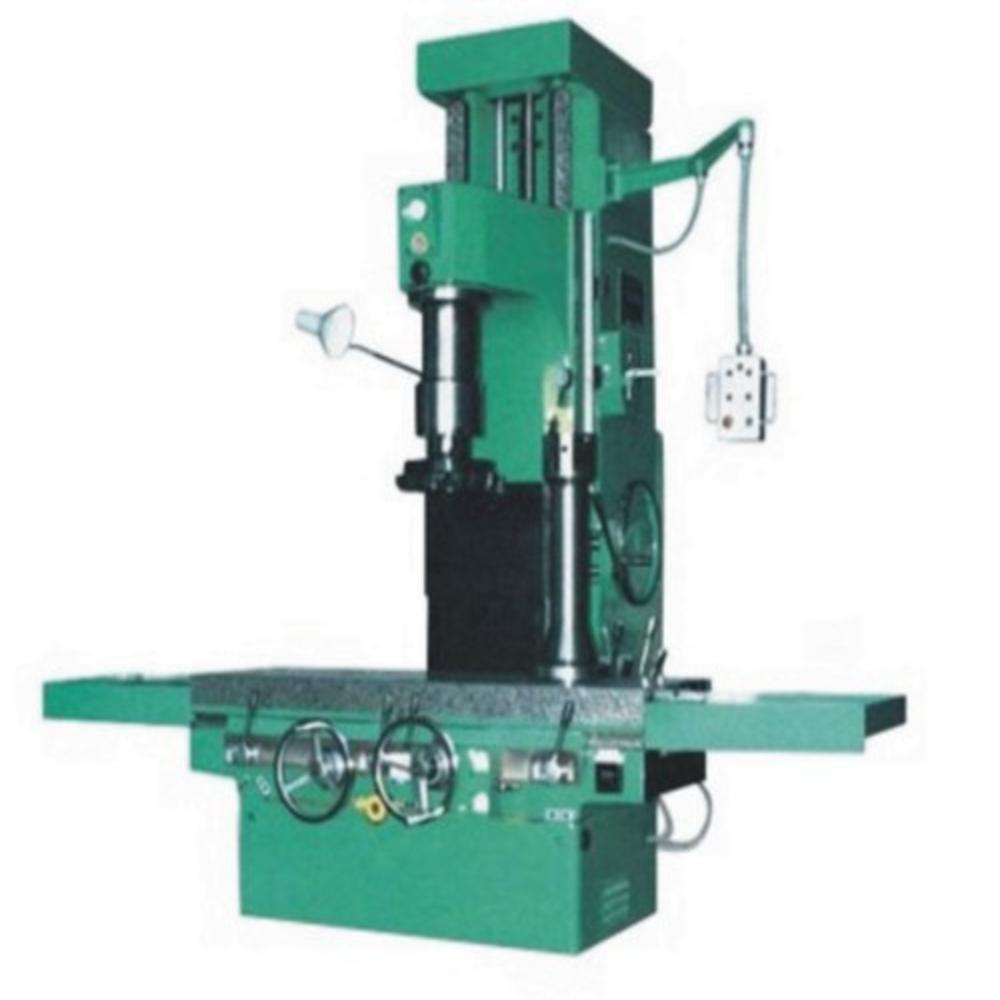

BORING MACHINE ANALYSIS SETUP
Product Details:
X
Product Description
BORING MACHINE ANALYSIS SETUP
The device consists of power supply safety control board, steel and aluminium structure bench, insertable boring machine
electrical control panel, casting material formed boring machine mechanical mechanism, boring machine holder frame, etc. The
boring machine electrical control panel comes with fault control box and related testing terminals for all circuit connectors, it can
control the two-direction fast movement of workbench, two-direction motion and speed of boring machine spindle, limiting
position protection. User can detect faults on the panel directly to enhance understanding of principle. There are more than 15
pcs specially designed control switches for manual setting of particular functions, the boring machine mechanical mechanism can
be connected with electrical part to achieve control, debugging and examination. The device is designed with ground protection
and leakage protection functions.
TECHNICAL PARAMETERS
- Power supply : Three-phase, AC 380V, 50Hz
- Capacity less than 300KVA and power less than 600W
- Action current leakage protection: less than 30mA, less than 0.1S
- Temperature: -5°C~45°C, RH: less than 92%
- Electrical control panel: It covers all the components needed for boring machine control, with the following minimum configuration: at least two groups NO/NC buttons coming with option switch bank, three phase breaker for leakage protection (maximum current 10A), two groups of fuse bank, 127V alternating current contactor kit, three groups of AC36V colorized lighting unit, AC220 red indicator, secondary contact group, three-grade transformer kit, two groups of thermal and time relay electrical unit with related bed structure, panel carrying and adjusting mechanical unit, etc.
- Boring machine mechanical mechanism: it is designed no difference with real boring machine in structure and principle. The length is not less than 800mm, the height is not less than 500mm, the width is not more than 800mm. It is made of stable steel, comes with movable and adjustable steel body support.
- Boring machine holder frame: 1177 mm×825 mm×645 mm, steel frame with four universal lockable casting wheels.
- Electrical control panel frame: 1000mm×1700mm×805mm, aluminium frame with four universal lockable casting wheels, a material storage drawer, water proof, fire proof board.
