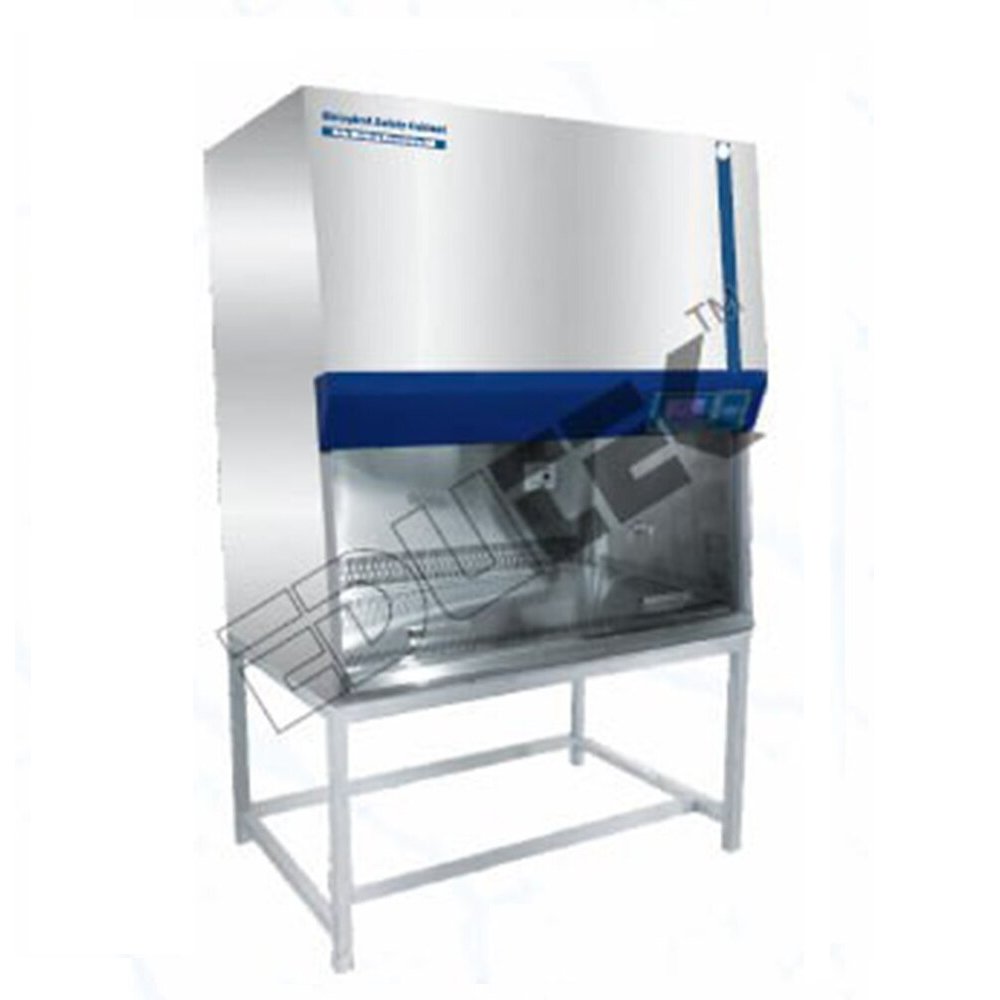

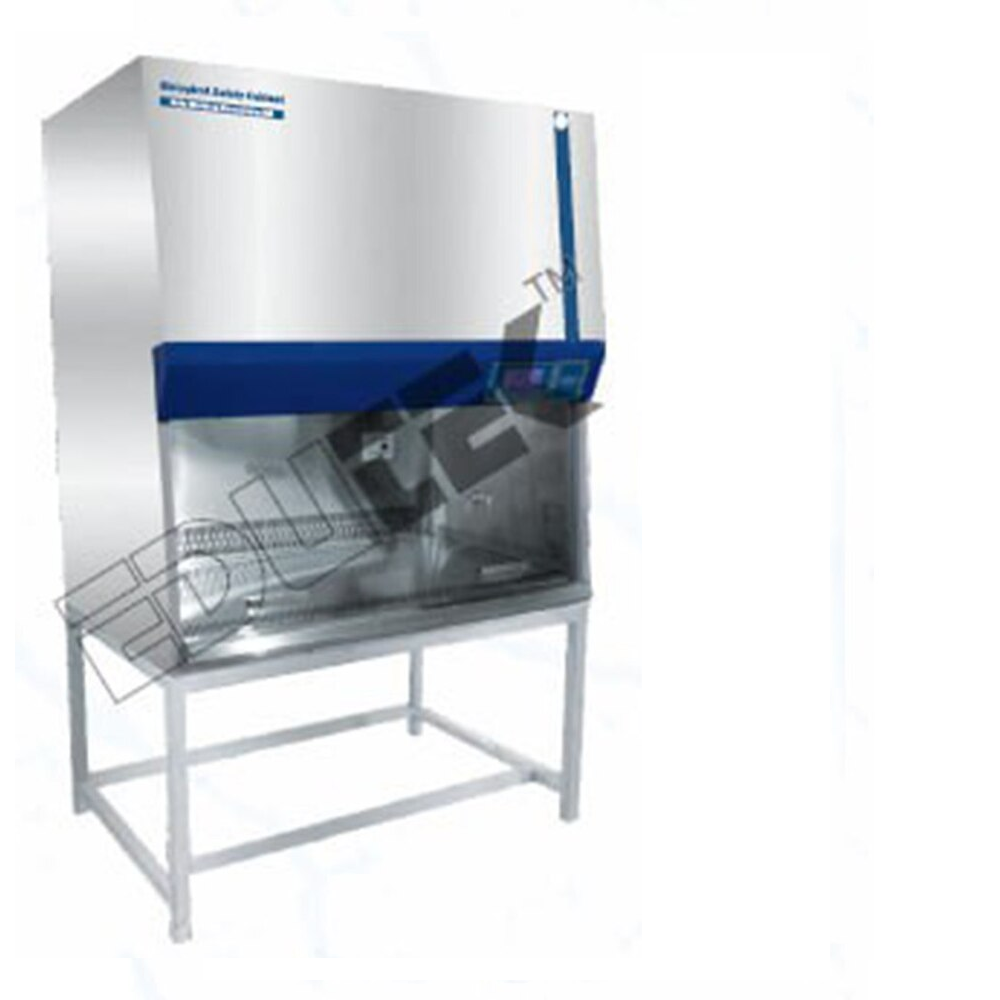

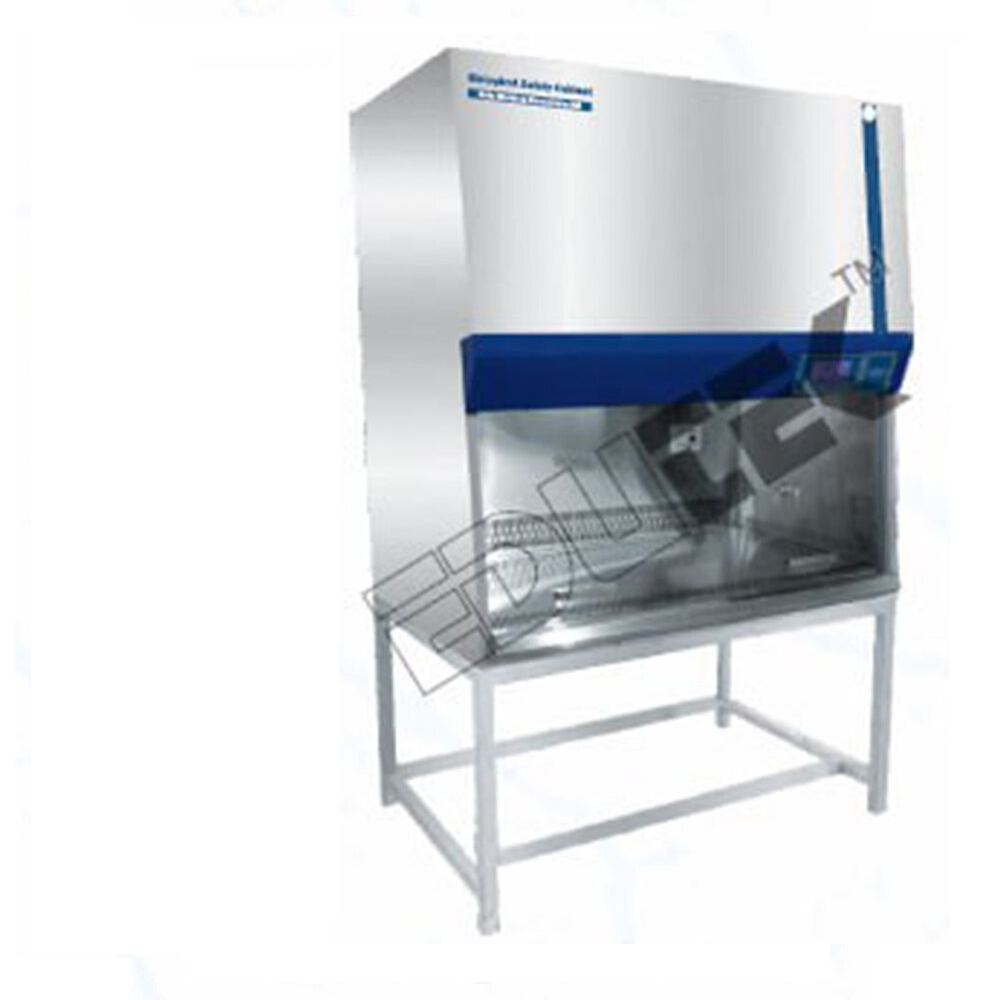

Biological Safety Cabinet Class II type 2

Send Inquiry

Request To Call Back

Biological Safety Cabinet Class II type 2

Name: Biological Safety Cabinet Class II type 2
Brand: EDUTEK INSTRUMENTATION
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Biological Safety Cabinet Class II type 2 Specification

Automation Grade
Semi-Automatic

Temperature Range
Ambient to +50C Celsius (oC)

Application
laboratory

Feature
5 linear feet per minute

Measurement Range
0.3-0.5 microns particle size filtration

Frequency
50/60 Hz Hertz (HZ)

Power Source
Electric

Core Components
HEPA filter

Model No
BSC-II-2

Accuracy
2% air velocity control mm

Voltage
220-240 V Volt (v)

Usage
laboratory

Equipment Materials
Epoxy-coated steel/304 stainless steel interior

Type
Class II Type 2 Biological Safety Cabinet

Display Type
Digital

Dimension (L*W*H)
1200 x 700 x 1950 mm (approx.) Millimeter (mm)

Weight
Approximately 120-150 kg Kilograms (kg)

Front Window
Sliding, counterbalanced, transparent glass

Pre-Filter
Washable pre-filter

Exhaust Filter
HEPA filter, >99.99% at 0.3 microns

UV Lamp
15W germicidal UV lamp included

Working Area
Wide work surface for sample handling

Illumination
Fluorescent/LED lighting and UV light for sterilization

Airflow System
70% recirculated, 30% exhaust

Filter Life Indicator
Yes

Work Tray
Stainless steel removable tray

Construction
Double wall construction with safety glass front window

Control Panel
Microprocessor based with touch controls

Caster Wheels
Heavy duty, lockable casters

Noise Level
<60 dB

Safety Interlock
Yes

Biological Safety Cabinet Class II type 2 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash in Advance (CID), Cheque, Cash Advance (CA)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About Biological Safety Cabinet Class II type 2

SC Class II Type A2

Edutek Biological Safety Cabinet Class II type 2 a negative pressure ventilated cabinet providing personnel and environmental protection for handling of low risk aerosols and particulate matter.It is operated with an open front and a minimum face velocity at the work opening of 75 linear feet per minute lfpm The air flows through the cabinet carrying contaminants with it, exiting through a HEPA filter, either into the laboratory or to outside

Enhanced User Safety and Sample Protection

This cabinets core focus is on both user and sample safety, utilizing a sophisticated airflow system that recirculates 70% and exhausts 30% air. The front sliding glass window, safety interlock features, and high-efficiency HEPA and pre-filters together mitigate contamination risks, while the stainless steel interior and removable work tray ensure effortless cleaning and sterilization.

Intelligent Control and Ergonomic Design

Operated via a microprocessor-based touch control panel, users can efficiently monitor parameters with digital precision. The built-in UV germicidal lamp and fluorescent/LED lighting enhance visibility and ensure thorough sterilization. Caster wheels ensure easy movement, while robust construction permits use in diverse and demanding laboratory environments.

FAQs of Biological Safety Cabinet Class II type 2:

Q: How does the Class II Type 2 Biological Safety Cabinet ensure both user and sample protection?

A: The cabinet features double-wall construction, a sliding safety glass window, and HEPA filtration (>99.99% at 0.3 microns) that prevents exposure to potentially harmful particulates. Its UV germicidal lamp further minimizes contamination risk, and the airflow system maintains directional air to protect both users and samples during handling.

Q: What process should be followed for sterilizing the working area inside the cabinet?

A: Before and after sample handling, the UV lamp should be activated to sterilize the interior. Routine cleaning with appropriate disinfectants and regular washing of the pre-filter are also recommended. The stainless steel work tray can be removed for thorough cleaning and maintenance as needed.

Q: When should the HEPA filter and pre-filter be replaced or cleaned?

A: The washable pre-filter should be cleaned regularly, depending on usage frequency and laboratory environment. The digital filter life indicator will alert you when its time to change the HEPA filter, ensuring consistent filtration performance and laboratory safety.

Q: Where can this cabinet be used most effectively?

A: This safety cabinet is designed for laboratory environments in research, clinical, pharmaceutical, or manufacturing settings. Its robust design and protective features make it suitable for laboratories in educational, healthcare, and industrial facilities throughout India.

Q: What benefits does the microprocessor-based control panel provide?

A: The touch-sensitive, microprocessor-based control panel allows precise regulation of air velocity (2% accuracy), lighting, and UV sterilization, while the digital display offers real-time status updates. This ensures users can easily control and monitor cabinet functions for optimized performance and safety.

Q: How does the airflow system contribute to operational safety?

A: The airflow system recirculates 70% of the air through HEPA filters and exhausts 30%, minimizing the risk of cross-contamination and environmental exposure. This system maintains a safe, clean working area, meeting laboratory biosafety requirements.
